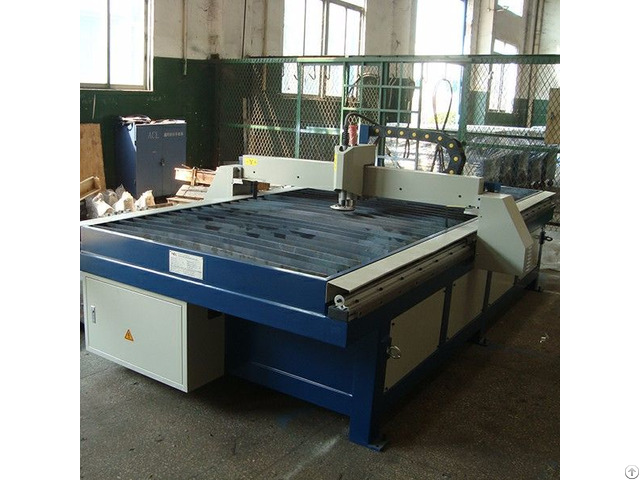

Acl 3100 Plasma Cutting Machine - China

Model: ACL-3100

Working Range (mm): 1300×3100

Slice Thickness (mm): 0.5~6

Cutting Speed (m/min): 10

Maximum Dimension (mm): length*width*height=4000à —1947×1200

Gr.

Weight (kg): About 2500

Motor Power: 0.5KW+1.0KW PLASMA CUTTING MACHINE This machine is widely used in cutting ordinary steel plates and stainless steel plates, and it is especially suitable for duct blanking.

Its work efficiency is dozens of times higher than ordinary technology.

With its high quality and high processing precision, it becomes ideal equipment for sheet metal cutting.

The frame of this machine is of complete steel-welded structure that is aging processed, hence it is stable and not easy to distort.

The drive part employs planetary speed reducer, gear and spline; the guide part employs a pair of double-axis linear guide with high positioning precision, little running resistance and flexible sliding which enables it to work stably and cut with high quality; the X axis has limit mechanism installed which prevent X- direct sliding units from hitting the limit mechanism fiercely when X-direct is beyond the cutting range, hence enhanced the safety and make users satisfactory and reassured in using.
