2u Redundant Power Supply R2a 700d1v2 700w - Taiwan
price: contact company for price
700W IPC Redundant Power Supply for 2U.
Solution for IPC, Server, Storage System, Workstation,
Networking, Disk array.
The minimum efficiency of the power supply is 80% at full
load and 115Vac/60Hz input.
L x W x H: 265 x 101 x 84 (mm) / 10.43 x 3.98 x 3.3
(inches)
1 - Model：R2A-700 D1V2
2 - Watts：700W
3 - Input：
★Input voltage: 90 ~ 264VAC FullRange.
★Frequency: 47 - 63 Hz.
★Input Current: 12A for 115VAC, 6A for 230VAC.
★Inrush Current: 30A for 115VAC, 60A for 230VAC.
★The Minimum efficiency of the power supply is 80% at full
load and 1150Vac/60HZ input.
★The minimum power factor at full load shall be 0.98 / 115V
60 Hz and 0.96 / 230V 50 Hz.
4 - Output：
◎ FEATURES:
★Meet the RoHS COMPLIANT 2002/95/EC.
★Meet the WEEE Directive (2002/96/EC))
★Temperature Range: Operating 0℃ ~ 40℃, Storage –20℃ ~
70℃
★Hold up time: 16 ms Minimum at full load & Normal input
voltage.
★OVER POWER PROTECTION: 110~150%
★OVER VOLTAGE PROTECTION
★OVER CURRENT PROTECTION
★SHORT CIRCUIT PROTECTION
★Remote On/Off Control.
★Power Good Signal: On Delay 100ms to 500ms, off delay 1ms.
★Safety: To meet UL, TUV, CB, CE, FCC, BSMI, CCC.
★EMI noise Filter: FCC Class B, CISPR22 Class B
Company Contact:
- Posted By: TC Sure Star Computer Co.
- Phone: 886226822505
- Address: No.2-1, Da’an Rd., Shulin Dist.,Taiwan (R.O.C.) , New Taipei City, Taiwan
- Email:
- Website: https://www.surestar.com.tw
Published date: February 25, 2014
- Business Description: Established in1989, TC Sure Star Computer Co.
has been designing and
manufacturing quality industrial power supply units and other related
power products.
From the regular switching power supply line, to full
line of high end Redundant power supply units, Sure Star has grown to
one of the leading brands in the IPC power supply industry.
Related listings
-
1u Redundant Power Supply 400w 250wGeneral Manufacturing - TC Sure Star Computer Co. - Taiwan - February 25, 2014 - contact company for price400W+400W redundant Power Supply Solution for IPC, Server, Storage System, Workstation, Networking. 1.Model 5306;R1J-400I1H2A0 2.Watts：400W+400 W 3.Input： VOLTAGE: 90~264VAC Full Range FREQUENCY: 50/60Hz. INPUT CURRENT: 7A (RMS) for ...
-

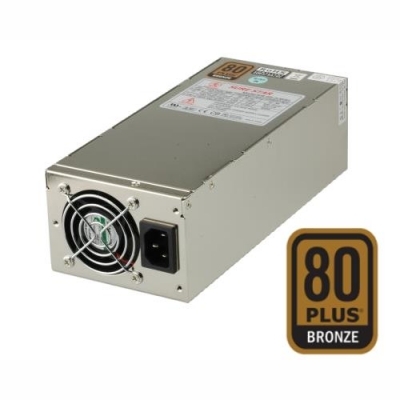

2u Single Power Supply Ss 2u60el 600wGeneral Manufacturing - TC Sure Star Computer Co. - Taiwan - February 25, 2014 - contact company for price600W Single 2U Power Supply. Solution for Server, Storage System, Workstation, Networking, Disk Array, IPC. Efficiency: 87% Typical at 115V AC. Full Load. With Fan Thermal Control Card. REACH-SVHC Certificated. 1.Model 5306;SS-2U60EL 2.Watts&# 653...
-
