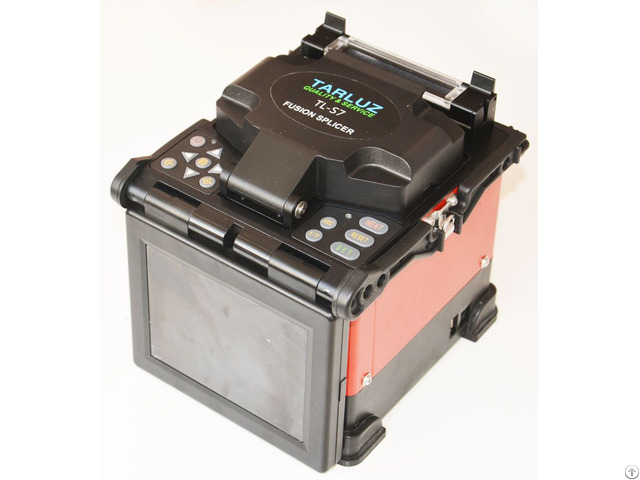

Tl S7 Ftth Fusion Splicer - China
price: contact company for price
General Details TL-S7 Optical Fusion Splicer is a cost effective high precision instrument specially designed for FTTH network.
The splicer average splicing loss 0.02dB(SM) 0.01dB(MM) 0.04dB(DS) 0.04dB(NZDS), with PAS fiber core alignment technology, CMOS image sensor imaging technology.
It with compact, durable, flexible features is an ideal tool for fiber optic network installation, testing, maintenance.
Features
1 - FTTH network, support both Single mode and multimode fiber
2 - PAS alignment to guaranty low splicing loss
3.8-second fusion splicing, 30-second heat shrinking
4 - X/Y display, or X/Y display simultaneously
5.5-inch LCD display
6.3-in-1 Clamp to support single fiber, drop cable, and pigtail
7 - Large capacity internal battery, support 200 splicing
8 - Compact and light weight, only 2.1kg with battery.
Applications
1 - Fiber Optic Network Installation
2 - FTTH Network Installation
3 - Optoelectronic device manufacturing
