Bio Soluble Aes Fiber Cloth - China

Introduction

Bio soluble AES fiber is a high-temperature insulating wool composed of man-made vitreous silicate fibers.

Bio soluble AES fiber is exonerated from the carcinogen classification in the European Union under the term of NOTA Q of European Directive 67/548/EEC.

Bio soluble AES fiber has been developed to show improved high temperature characteristics required to act as an alternative to RCF.

The Bio soluble AES fiber textiles offer a versatile alternative to traditional insulation solutions for commercial, industrial, and transportation applications.

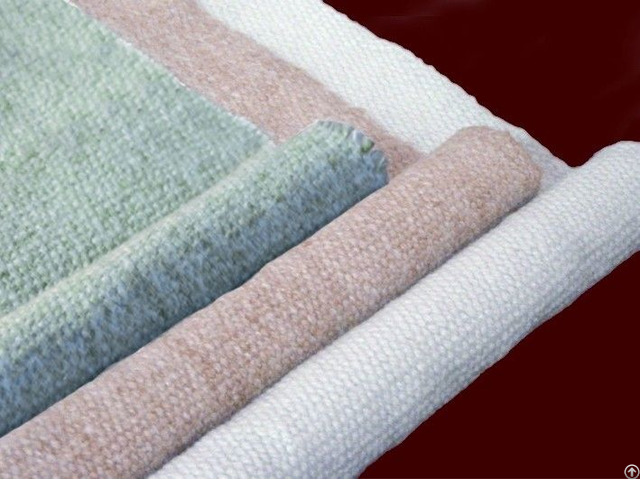

Bio soluble AES fiber Cloth is produced by high quality Bio soluble AES fiber and woven from yarn.

It can be used for high temperature applications up to1050°C.

The cloth is reinforced with fiberglass filament, and optional stainless steel wire (Inconel/alloy steel wire).

Or even short working temperature could be reached to 1260°C.

It has good resistance to acid corrosion, resistant aluminum, zinc and other molten metal erosion.

Benefits

 Excellent thermal insulation properties;

 Free of binder or lubricant;

 Thermal stability;

 Low thermal conductivity;

 Low heat storage capacity;

 Good sound absorption;

 Potential savings on waste disposal;

 Lower shot content than all other alkaline earth silicate(AES) and refractory ceramic fibers(RCF)

Continuous working temp: 1050°C (1900°F);

Maximum working temp: 1260°C (2300°F);

fiber cloth

Type Thickness

(mm) Width

(mm) Weight

(g/m2) Weave Reinforcement Working Temperature

( °C)

BC2G 2 1000 1000 Plain Fiberglass Filament 650

BC3G 3 1000 1400 Plain

BC5G 5 1000 2300 Twill

BC2S 2 1000 1100 Plain SUS304 wire

(Stainless steel wire) 1050

BC3S 3 1000 1500 Plain

BC5S 5 1000 2400 Twill

Roll length: BC5G, BC6G and BC5S is 20m/roll, other is 30m/roll

Type Thickness

(in) Width

(in) Weight

(oz/m2) Weave Reinforcement Working Temperature

( °F )

BC2G 1/16"(0.08) 39.4 33.0 Plain E-glass Filament 1200

BC3G 3/32"(0.12) 39.4 49.4 Plain

BC5G 5/32"(0.20) 39.4 81.1 Twill

BC2S 1/16"(0.08) 39.4 38.8 Plain Inconel/alloy steel wire 1900

BC3S 3/32"(0.12) 39.4 52.9 Plain

BC5S 5/32"(0.20) 39.4 84.7 Twill

Roll length: CC5G and CC5S is 21.9yard/roll, other is 33yard/roll

Other thickness and width will be available on request.

Application

 High temperature insulation of kilns, pipes and vessels;

 Sealing of doors, valves, flanges;

 Raw material of fire doors and fire shutters;

 High temperature furnace curtain;

 Insulation of engine and instrument;

 Fireproof cable coverings and high temperature fireproof materials;

 Covering insulation cloth;

 Flue liner and other high temperature filtration;

 Sound-absorbing and other used to replace RCF and asbestos applications;

Typical applications of Bio soluble AES fiber cloth include: expansion joints, safety blankets, curtains, welding blankets, protective and insulating covers, shields, gaskets, cable or pipe wrapping, etc.

It has been widely used in welding, foundry works, aluminum and steel mills, boiler insulation and seal, shipyards, refineries, power plants and chemical plants.
