Vlu200414 Four Point Contact Ball Bearing For Rotary Welding Machinery - China

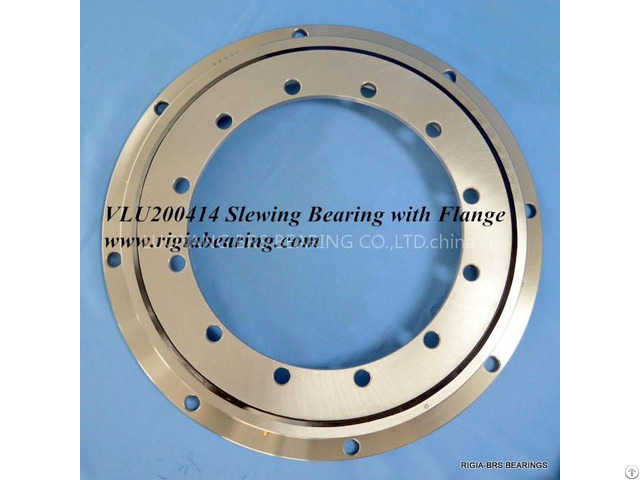

VLU200414 four point contact ball slewing bearing

di 304 mm Tolerance: +0, 5

Da 518 mm Tolerance: -0, 5

Da ZT 516 mm Valid for bearings with centring (suffix ZT)

Centring lengths (see dimension drawing)

Tolerance: -IT8

Di 415, 5 mm Tolerance: +0, 5

da 412, 5 mm Tolerance: -0, 5

di ZT 306 mm Valid for bearings with centring (suffix ZT)

Centring lengths (T, t) (see dimension drawing)

Tolerance: +IT8

H 56 mm

La 490 mm

Li 332 mm

na 8 Number of fixing holes in outer ring

ni 12 Number of fixing holes in inner ring

m 23, 5 kg Mass

Fr per 55000 N Maximum permissible radial load against friction lock

Ca 169000 N Basic dynamic load rating, axial

C0a 295000 N Basic static load rating, axial

Cr 111000 N Basic dynamic load rating, radial

C0r 110000 N Basic static load rating, radial

4 taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference

Bearings are also available without holes in the bearing rings.

BRS Four Point Contact Bearing Features:

1 - Consists of inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.

2 - Gear teeth on the outer ring, inner ring or without gear teeth.

3 - Bearing rings with through holes or threaded holes for fixing screws.

4 - Compact structure and light weight.

5 - Can support axial, radial and tilting moment loads at the same time.

6 - Professional Surface treatment such as blackening, galvanization(zinc-platin g, zinc coating), antisepticize, corrosion prevention, rotproof, antiseptic, anticorrosive painting, etc.

Ensure BRS Bearings function well under extreme working conditions.

Application: Rotary welding machinery, medium and small series crane and excavators etc.
