Va250309 N Four Point Contact Ball Slewing Bearing External Gear Teeth - China

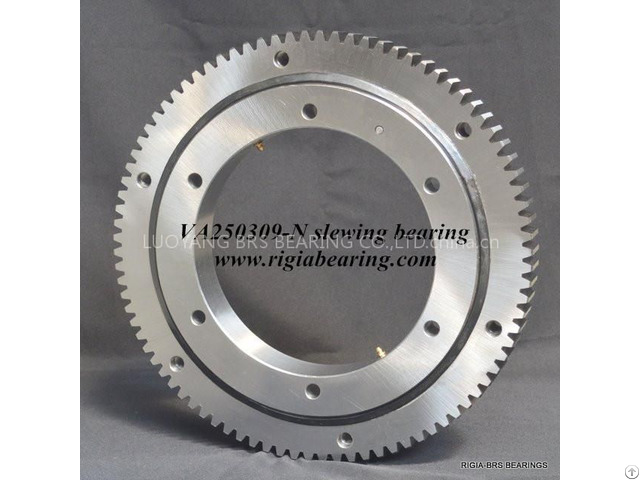

VA250309-N Four point contact ball slewing bearings

d 235 mm

D 408.4 mm

H 60 mm

Ca 325 KN Basic dynamic load rating, axial

Coa 650 KN Basic static load rating, axial

Cr 215 KN Basic dynamic load rating, radial

Cor 295 KN Basic static load rating, radial

Mass 29.5 kg

BRS Four Point Contact Bearing Features:

1 - Consists of inner and outer rings with a closing plug and securing dowel, rolling elements, spacers, contact seals and lubrication nipples.



2 - Gear teeth on the outer ring, inner ring or without gear teeth.

3 - Bearing rings with through holes or threaded holes for fixing screws.

4 - Compact structure and light weight.

5 - Can support axial, radial and tilting moment loads at the same time.

6 - Professional Surface treatment such as blackening, galvanization(zinc-platin g, zinc coating), antisepticize, corrosion prevention, rotproof, antiseptic, anticorrosive painting, etc.

Ensure BRS Bearings function well under extreme working conditions.

Application: Rotary welding machinery, medium and small series crane and excavators etc.

To learn more about our company or get the Installation Instructions of VA250309-N four point contact ball slewing bearing external gear teeth regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us.

Drawing and sample of VA250309-N four point contact ball slewing bearing external gear teeth are available upon request.
