Sx011818 Thin Section Cross Roller Bearing For Precision Rotary Tables - China

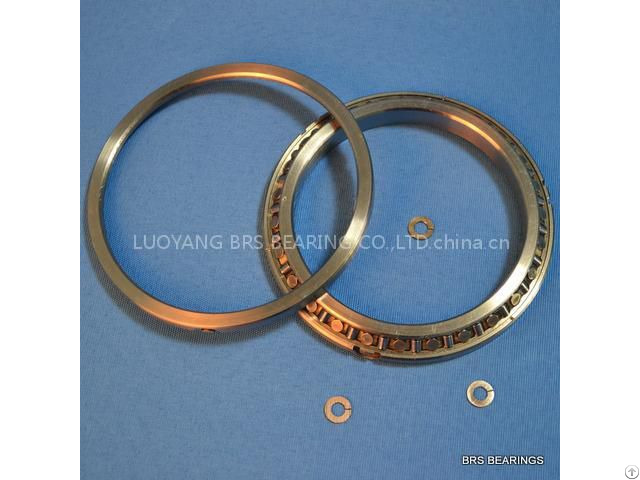

SX011818 Crossed Roller Bearing

d 90 mm

D 115 mm

B 13 mm

rmin 1 mm

Ca 25.5 KN Basic dynamic load rating, axial

Coa 91 KN Basic dynamic load rating, axial

Cr 18.3 KN Basic dynamic load rating, radial

Cor 36.5 KN Basic static load rating, radial

Mass 0.4 kg

BRS Precision Crossed Roller Bearing (INA structure)

INA structure precision crossed roller bearing is a special kind of bearing with major series SX0118 - The rollers are placed together at right angles with alternate rollers facing in opposite directions, which enables bearing to support radial and axial loads at the same time.

With supreme machining precision, BRS INA structure crossed roller bearing possesses the features of flexible rotation, high rigidity, high precision and high loading capacity.

To learn more about our company or get the Installation Instructions of SX011818 thin section crossed roller Bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us.

Drawing and sample are available upon request.

Company Contact:

• Posted By: 2010

• Phone: +86-379-64850388

• Address: B1209, Wanguoyinzuo, Anhui Road, Luoyang , Henan , China

• Email:

• Business Description: Luoyang BRS Bearing Co., Ltd is located in Chinese national famous bearing base - Luoyang, where

  bearings have been mass-produced since 1956 - BRS specialized in producing and selling slewing bearings, tapered roller bearing, cylindrical roller bearings, spherical roller bearings, precision bearings, angular

  contact ball bearings, thrust bearings, deep groove ball bearing, YRT bearings, etc.

  All kinds of bearings of the inner diameter Φ100mm-Φ7500mm can be manufactured.

  The company owns a powerful technical team, and established a series of strict quality control management.

  Based on the decades of experience in this industry and professional knowledge of international procurement, BRS is able to supply high quality products and service with reasonable price.

  RIGIA is a bearing brand of Luoyang BRS Bearing Co., Ltd, it originates from "Rigidity Industry Automation

  Bearing".

  Committing to the rapid development of industrial automation, BRS Bearing Company provides

  complete solutions to meet various customers' requirements on bearing rotary precision, rigidity, and

  structure.
