Rb7013 Crossed Roller Bearing For Medical Equipment - China

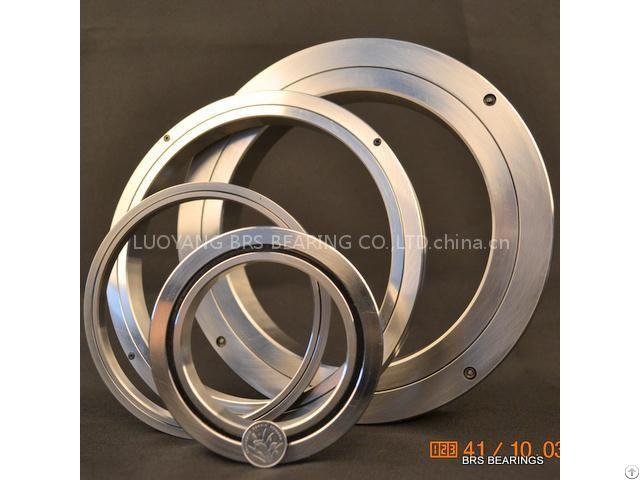

RB7013 crossed roller bearing

d: 70mm

D: 100mm

B: 13mm

C: 19.4kN

Co: 27.7kN

Mass: 0.35kg

BRS High Precision Cross Roller Bearing IKO CRB series

CRB Series bearing belongs to high precision cross roller bearings.

Its cylindrical rollers are placed

in a 90°V groove, with each roller arranged in cross-shape with the adjacent one, and separated

from each other by a spacer retainer.

BRS High Precision Cross Roller Bearing IKO CRB

series‘ outer rings are designed to be separable, and fixed by screw.

BRS High Precision Cross Roller Bearing IKO CRB series Features

1 - Sustain radial, axial and moment loads

2 - Make the best use of space

3 - Stable Rotation and high rigidity & running accuracy supplied with normal clearance, little clearance or Even under a pre-load.

Applications

IKO CRB series cross roller bearings are specially suitable for the applications where space is

limited, while high rigidity and high rotation accuracy are required.

Such as joints and swiveling

units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing

machines.

To learn more about our company or get the Installation Instructions of RB7013 Crossed Roller Bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us.

Drawing and sample of RB7013 Crossed Roller Bearing are available upon request.
