Csf 32 2uh Harmonic Reducer Bearing - China

CSF-32-2UH harmonic reducer bearing

d 26 mm

D 112 mm

H 22.5 mm

D1 104 mm PCD

D2 55 mm PCD

D3 40 mm PCD

φ1 16-φ4.5 Mounting Hole

φ2 8-M10 Mounting Hole

φ3 8-M8 Mounting Hole

Mass 1.74 kg

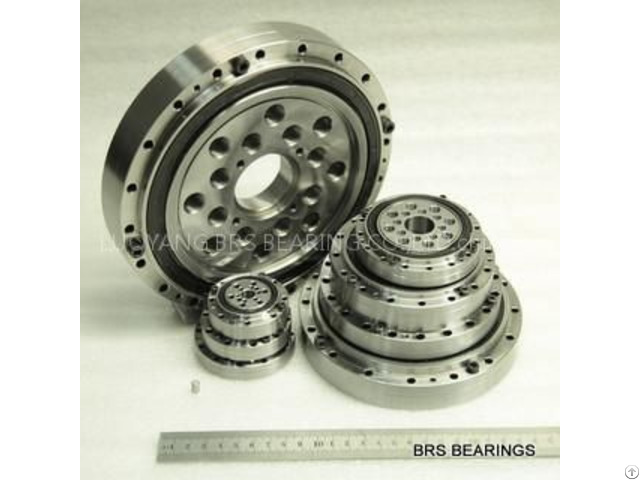

BRS Harmonic Reducer Bearing CSF-XRB Series

Harmonic reducer bearing is widely used in industrial automation and robotic arm because of its high precision, high rigidity and high transmission ratio.

BRS HD series crossed roller bearing CSF-XRB is specially designed for CSF harmonic reducer.

Both inner ring and outer ring contain multilayers of precision holes for connecting with working parts.

BRS Harmonic Reducer Bearing CSF-XRB Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity.

It's popular in domestic market, and also got favorable reputation from customers of Taiwan, Southeast Asia and Europe.

Luoyang BRS Bearing Co., Ltd specialized in producing Harmonic Reducer Crossed Roller Bearing CSF-XRB Series.

To learn CSF-XRB series' price, detailed parameters, usage and installation, maintenance or other information please contact us.

Company Contact:

• Posted By: 2010

• Phone: +86-379-64850388

• Address: B1209, Wanguoyinzuo, Anhui Road, Luoyang , Henan , China

• Email:

• Business Description: Luoyang BRS Bearing Co., Ltd is located in Chinese national famous bearing base - Luoyang, where

  bearings have been mass-produced since 1956 - BRS specialized in producing and selling slewing bearings, tapered roller bearing, cylindrical roller bearings, spherical roller bearings, precision bearings, angular

  contact ball bearings, thrust bearings, deep groove ball bearing, YRT bearings, etc.

  All kinds of bearings of the inner diameter Φ100mm-Φ7500mm can be manufactured.

  The company owns a powerful technical team, and established a series of strict quality control management.

  Based on the decades of experience in this industry and professional knowledge of international procurement, BRS is able to supply high quality products and service with reasonable price.

  RIGIA is a bearing brand of Luoyang BRS Bearing Co., Ltd, it originates from "Rigidity Industry Automation

  Bearing".

  Committing to the rapid development of industrial automation, BRS Bearing Company provides

  complete solutions to meet various customers' requirements on bearing rotary precision, rigidity, and

  structure.
