Crbh4510auu Crossed Roller Bearing For Machine Tools - China

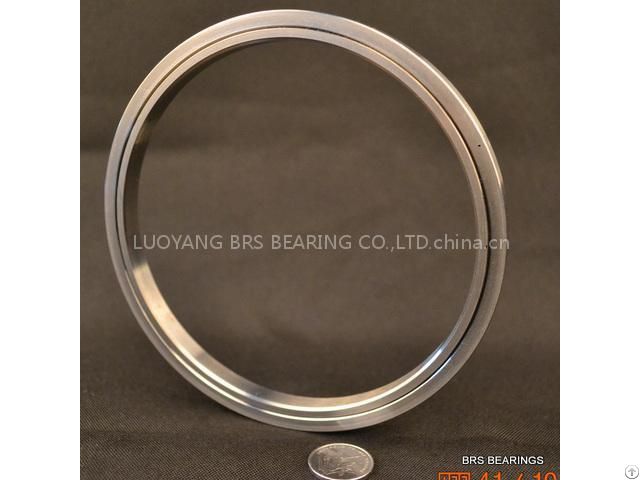

CRBH4510AUU Crossed roller bearing

d45 mm

D70 mm

B10 mm

Cr8.86 KN Basic dynamic load rating

Cor11.3 KN Basic static load rating

Mass 0.16 kg

CRBH Series Crossed Roller Bearing - Integrated Inner/Outer ring, Slim type

Introduction:

CRBH Series crossed roller bearings range in size 36 – 310mm OD.

They provide optimal economy and

capacity for a given envelope dimension.

Design:

CRBH Series crossed roller bearings have integrated inner/outer ring, which provides high rigidity and

running accuracy during rotation, suitable for rotating both inner ring and outer ring.

Besides, CRBH series

slewing bearing is with separators, ensures bearings' smooth rotation.

Housing or fixing plate will be needed during installation.

Features:

- High rigidity and loading capacity, can take axial & radial loads.

- Stable rotation accuracy and torque.

- Thin section, space saving.

Applications:

- Industrial robot joints, - Precision Turntable

- Rotation part of Machine tools

- Inspection instrument, Medical equipment

- Communication and radar facilities

To learn more about our company or get the Installation Instructions of CRBH4510AUU crossed roller bearing regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us.

Drawing and sample are available upon request.
