Crbh258auu High Rigidity Crossed Roller Bearing For Precision Turntable - China
price: 200.00 Dollar US$

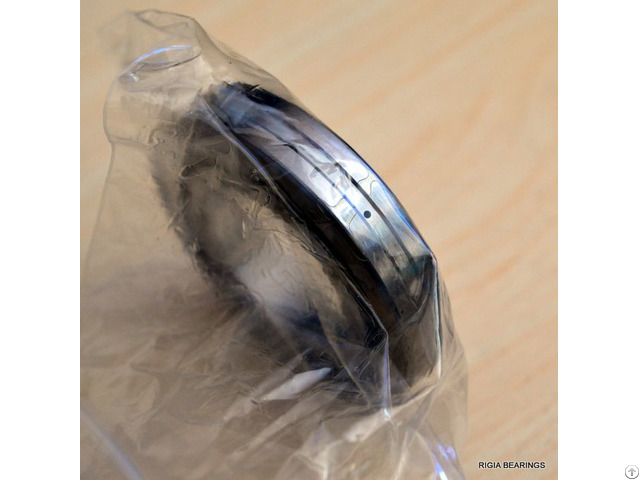

CRBH258AUU crossed roller bearing
d 25 mm
D 41 mm
B 8 mm
Cr 3.12 KN Basic dynamic load rating
Cor 2.81 KN Basic static load rating
Mass 0.05 kg
structure: slim type(thin section), integrated inner ring & outer ring, sealed type.
CRBH258A UU Cross Roller Bearing belong to IKO Model CRBH series cross roller bearing(with separator).
It's ultra-thin type, has integrated inner & outer ring, need housing and flange for fixing during installation.
Features:
CRBH series cross roller bearing has stable rotational precisioin and torque, suited for limited space, and where inner ring and outer ring rotation required.
Applications:
Industrial robot joints, turntable, medical equipments, radar, rotation tools set of CNC
A means open type, A UU means sealed on both sides.
To learn more about our company and product, please visit our website or contact us.
Drawing and sample of CRBH258AUU are available upon request
Company Contact:
- Posted By: 2010
- Phone: +86-379-64850388
- Address: B1209, Wanguoyinzuo, Anhui Road, Luoyang , Henan , China
- Email:
Published date: November 29, 2016
- Business Description: Luoyang BRS Bearing Co., Ltd is located in Chinese national famous bearing base - Luoyang, where
bearings have been mass-produced since 1956 - BRS specialized in producing and selling slewing bearings, tapered roller bearing, cylindrical roller bearings, spherical roller bearings, precision bearings, angular
contact ball bearings, thrust bearings, deep groove ball bearing, YRT bearings, etc.
All kinds of bearings of the inner diameter Φ100mm-Φ7500mm can be manufactured.
The company owns a powerful technical team, and established a series of strict quality control management.
Based on the decades of experience in this industry and professional knowledge of international procurement, BRS is able to supply high quality products and service with reasonable price.
RIGIA is a bearing brand of Luoyang BRS Bearing Co., Ltd, it originates from "Rigidity Industry Automation
Bearing".
Committing to the rapid development of industrial automation, BRS Bearing Company provides
complete solutions to meet various customers' requirements on bearing rotary precision, rigidity, and
structure.
