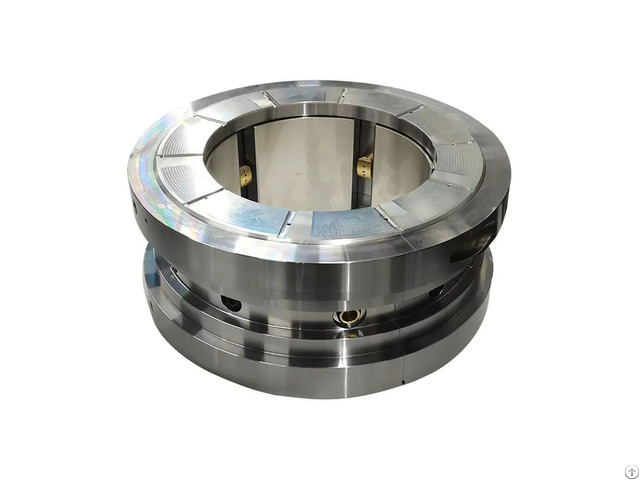

Combined Journal Bearings - China

Combined journal bearings are used for compressor, steam turbines, gearbox, expander, high speed motor, wind power generator motors, and generator.

Our bearings are compatible of waukesha bearing, renk bearing and kingsbury bearing.

We can customize journal thrust plain bearings according to your special requirements.

Maximum linear speed: 120m/s, Speed range: 5000rpm-80000rpm

Bore dia.

Max.

1500mm

Pad number: 4-pad, 5-pad

Pad substrate material: 42CrMo or Cu-Cr

Bearing with tilting pad thrust or fixed thrust

various designs for different styles

Reduced temperature elevation, With RTD

Pads with linear or spherical pivots

Babbitt (Tegostar 738) meets Europe REACH requirements Industrial Combined Journal Bearings – Precision Engineering for Heavy-Duty Applications

These bearings are designed to handle substantial axial loads from rotating shafts with minimal power loss, ensuring smooth and efficient operation.

Our bearings are not only robust but also offer simplified installation, making them an ideal choice for a wide range of industrial settings.

Industrial Combined Journal Bearings Key Features

Tilting Pads for Optimal Performance

Each bearing comprises a series of tilting pads supported within a carrier ring.

This design allows for the creation of a self-sustaining hydrodynamic film, which significantly reduces friction and wear.

The tilting pads adapt to the shaft's movement, providing consistent support and reducing vibration, thus enhancing the overall stability of the rotating system.

Carrier Ring Configurations

The carrier ring can be either a single-piece or split into halves, offering flexibility in installation and maintenance.

Various positioning configurations are available to suit different applications and shaft designs, ensuring optimal performance and reliability.

Custom Manufacturing

We offer custom manufacturing options for larger sizes and capacities upon request.

This ensures that our bearings can be tailored to meet the specific needs of your industrial application.

Our team of engineers works closely with customers to develop custom solutions that meet their unique requirements, ensuring precision and performance.

Minimal Power Loss

The design of our industrial combined journal bearings minimizes power loss, allowing for more efficient energy utilization.

This is particularly beneficial in applications where energy conservation is a priority, such as in power generation and industrial machinery.

Simplified Installation

Our bearings are designed for easy installation, reducing downtime and maintenance costs.

The modular design allows for quick and straightforward assembly, ensuring that your equipment is back in operation as soon as possible.
