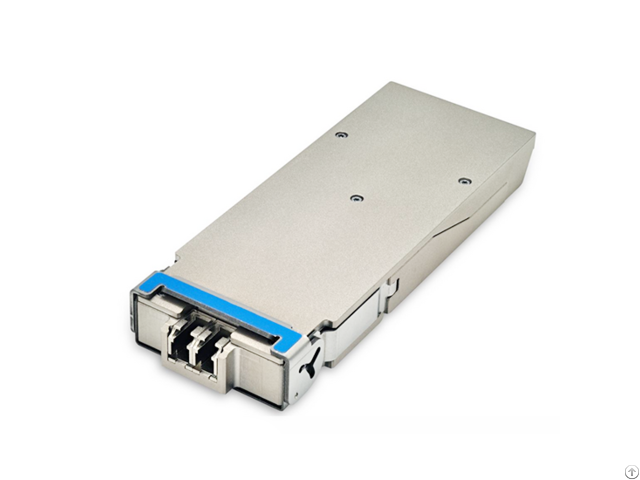

Hot Pluggable 100gbase Lr4 100gb S Cfp2 10km 100g Fiber Optical Transceiver Module - China

1 - Brief Introduction The 100G CFP2 LR4 optical transceiver integrates the transmit and receive path onto one module.

On the transmit side, four lanes of serial data streams are recovered, retimed, and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths.

The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.

On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer.

Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.

This module features a hot-pluggable electrical interface, low power consumption, and MDIO management interface.

2 - Key Features - Duplex LC receptacle optical interface

- Single +3.3V power supply

- Hot pluggable

- Operating optical data rate up to 112Gbps

- Operating electrical serial data rate up to 27.952493Gbps

- 4 parallel electrical serial interface

- AC coupling of CML signals

- PIN ROSA

- Low power dissipation( Max: 9W)

- Built in digital disgnostic function

- Operating case temperature range: 0°C to 70°C

- Compliant with 100GBASE-LR4 and OTU4

- MDIO Communication Interface

- Compatible with all kinds of commercial ONT 3 - Application Optical transceivers can be applied for Gigabit Ethernet, Fiber channel, SDH/SONET/ATM, switch, routers, servers, Ethernet Switch and servers, storage, SONET(OC-192)/SDH(STM64) card, high speed storage area network (SAN), high speed data channel, PDH and other network transmission systems.

APPLICATIONS

- Local Area Network(LAN)

- Wide Area Network(WAN)

- Switch to router interface

- ITU-T OTU4 OTL4.4 applications

Standards

- Compliant with IEEE 802.3ba

- Compliant with CFP2 MSA hardware specifications

- Compliant with CFP2 MSA management specifications

- Compliant with ITU-T G709/Y.

1331

- Compliant with RoHS Keywords: CFP2 Transceiver, 100g transceiver, CFP2 module
