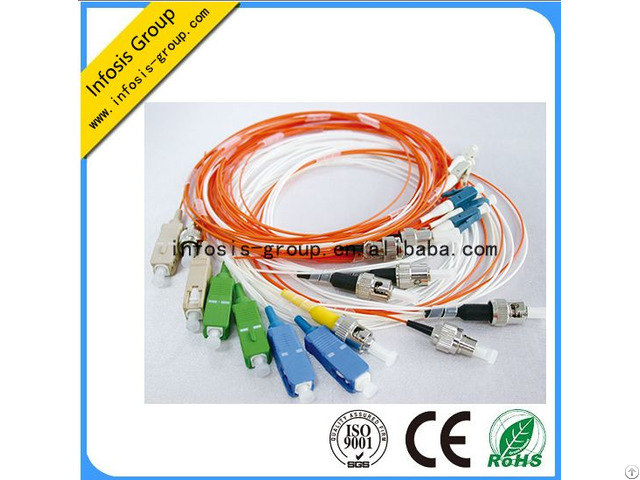

Fiber Optic Pigtail 2 0 3 0mm Flexible Sm Mm Om4 Om3 Sc - China

Product Description

SPECIFICATION: waterproof pigtail cord

Connector Type LC/FC/ST/SC Waterproof Pigtail

Fiber Type Single-Mode

Cable Diameter 9.8, 11.8

Insertion Loss PC≤0.20dB UPC≤0.20dB APC≤0.30dB

Return Loss PC≥40dB UPC≥50dB APC≥60dB

Working Condition -40℃ to +75℃

End Face Geometry The radius of curvature : 10-25(PC/UPC) 5-12(APC) Apex Offset : 0-50um

Fiber height : -100 to +100nm Characteristic High precision alignment

Proof erosion body

Comply with ROSH

Material comply with the requirement of UL 94V-0 The connector comply with the standard of NTT/TELCORDIA/IEC/ITU APPLICATIONS:

1 - Telecommunications LAN 3 - FTTH 4 - Optic fiber sensors 5 - Testing instruments

FEATURES:

1 - Low Insertion tolerance 2 - Easy to handle 3 - Stable environment

SPECIFICATIONS:

1 - Return Loss : PC>45 dB, APC>60 dB

2 - Insertion Loss : <0.3 dB

3 - Opertions Temperature: -40℃~85℃

4 - Storage Temperature: -50℃~85℃

5 - Industry Standard: TA-NWT-001209
