Efficient Multi Channel Digital Input Ethernet Remote Acquisition Module M410t - China

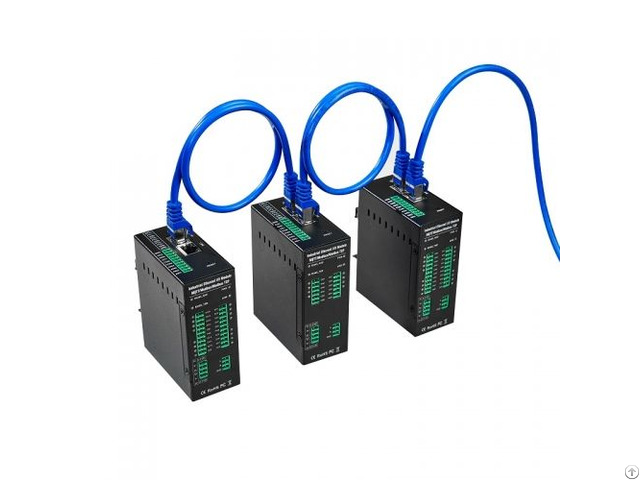

Efficient Multi-Channel Digital Input Ethernet Remote Acquisition Module M410T The 16CH Digtial Input Module M410 Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside.

It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems.

It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system.

The 16CH Digtial Input Module M410 Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.

g: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs.

At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements.

The 16CH Digtial Input Module M410 Ethernet Remote I/O module provides 16 optical-isolated digital inputs, supports max.

700KHz high speed pulse counter.

All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable.

Detail MXXXT.

jpg Features: 1 - Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog;

2 - Wide range power supply 12 ~ 36VDC with over voltage and phase-reversal protection;

3 - Management and configuration via LAN connection configuration software for easy operation and maintenance;

4 - Integrated 1-2 10/100M adaptive Ethernet module, supports Modbus TCP protocol;

5 - 4 RTD input, supports PT100 and PT1000 resistance sensor, compatible 2 or 3 wires;

6 - High sampling frequency and special filtering strategy to ensure reliability;

7 - 1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules;

8 - Supports register mapping function and extend I/O inquiry strategy;

9 - Provides 1 channel 12~36VDC power source output for external device, saving wiring cost;

10 - LED instructions work status, with reset button to reset, easy on-site installation and commissioning;

11 - Using metal shell, protection class IP30 - Metal shell and system security isolation, especially suitable for industrial applications in the field;

12 - Small size, L105 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.

Typically applications: 1 - BTS Monitoring; 2 - Security Alarm System applications; 3 - Supervision and monitoring alarm systems; 4 - Automatic monitoring system; 5 - Vending Machines security protection; 6 - Pumping Stations, Tanks, Oil or Water levels; 7 - Buildings and Real Estate; 8 - Weather Stations; 9 - River Monitoring and Flood Control; 10 - Oil and gas pipelines; 11 - Corrosion protection 12 - Temperatures, water leakage applications; 13 - Wellheads, boat, vehicle; 14 - Energy saving, street lights control system; 15 - Valve controls; 16 - Transformer stations; 17 - Unmanned machine rooms; 18 - Control room application; 19 - Automation System, M2M; 20 - Access Control System; 21 - PLC Gateway, PLC Remote Monitoring.
