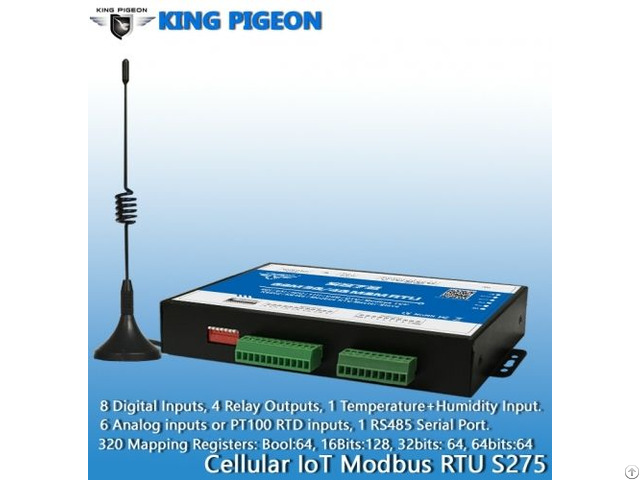

Cellular Iot Modbus Rtu S275 - China

Industrial Remote Monitoring/Management/Set ting Remote Terminal RTU to SCADA System

Introduction: The Cellular IoT Modbus RTU is an industrial class, high reliability, high stability, and programmable Remote Terminal Unit (RTU).

It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module.

It provides 8 digital inputs, 6 analog or PT100 Resistance Temperature Detector (RTD) inputs, 4 relay outputs, 1 ambient sensor input for monitoring onsite temperature and humidity, and RS485 serial port, supports extending 320 I/O tags via Modbus RTU protocol.

It can monitoring and operates the I/O ports by SMS, APP, Web Server, internet, timers and programmed inter-lock events automatically.

Specifications: Item Reference Scope DC Power supply Standard adapter: DC 12V/1.5A Range 9-36VDC Power consumption Standby: 12V/70mA; Working Max: 12V/300mA GSM Frequency 850/900/1800/1900Mhz 3G/4G/NB-Iot Optional: WCDMA/TDD-LTE/FDD-LTE/NB- IoT TCP/IP stack TCP, UDP SIM interface Supporting 3V SIM Card External antenna SMA Antenna interface, 50 Ohm, Gain: 3dB Serial Interfaces 1 USB Port Protocols SMS, GPRS UDP, TCP, Modbus RTU, Modbus TCP and more equipment protocols can be added according to requirements.

RS485 1 RS485, Support Transparent transmission and Modbus RTU Slave, Modbus RTU Master.

Digital Inputs 8 Digital input, NC/NO type, one of it can be used as Pulse Counters; Analog Inputs 6 Analog Inputs.

12 bit resolution, 0-5V or 0-20mA or 4-20mA; Optional: each AIN can change to PT100 RTD inputs.

Temp.

&Hum Inputs Temperature range: -40°C to +80°C, Humidity Range: 0~100%RH; Relay Outputs 4, Rated: 5A/30VDC, 5A/250VAC Power Outputs 1 Port, for external device; Extend I/O tags Boolean: 64, 16-bit: 128, 32-bit: 32, 64-bit: 0 Memory Capacity Internal 8G SD card inside, can save the data for 100000events.

Backup Battery 3.7V 1200mAH Temperature range -10-+70 °C Humidity range Relative humidity 95% (condensation free) Exterior dimension 175mm*88mm*30mm Net Weight 950g Detail: c54f671a0f.

jpgf3c34c9f5d.

jpg BTS S275 S275 APP 1 S275(4) Features: 1 - Can be operated from anywhere, no distance limitation; 2 - Quad band 850/900/1800/1900Mhz GSM GPRS Module inside.

3 - 3G/4G/NB-IoT Modules are optional; 4 - Modular design, can easily upgrade the cellular module if network upgrade; 5 - Embedded ARM® Cortex™-M4 32 Bit RISC Core, 168 MHz inside, RTOS system, reliable performance with in-built watchdog; 6 - Wide range power supply 9~36VDC with over voltage and phase-reversal protection; 7 - 8 digital inputs, compatibles dry and wet contact, one of it can be used as pulse counter; 8 - 6 analog inputs, 12bit resolution, compatibles 0/4~20mA, 0~5V, can change to PT100 Resistance Temperature Detectors; 9 - 4 relay output (5A/30VDC, 5A/250VAC), compatibles pulse outputs; 10 - 1 ambient sensor input for monitoring onsite temperature and humidity; 11 - Inbuilt inter-lock logic programmer and powerful timer program function; 12 - Resend the data while communication failure and alert to users by SMS; 13 - Inbuilt TCP/IP protocol stack, supports cloud, APP and web server applications.

14 - Supports Modbus TCP protocol, can integrate to SCADA, HMI, DSC directly.

15 - 1 RS485 port, supports Modbus RTU Master and Slave, Max.

320 I/O tags can be used to extend I/O ports or meters; 16 - Supports SMS Alert when I/O triggered or recovery, and external power lost or recovery; 17 - Provides 1 channel 9~36VDC power source output for external device, saving wiring cost; 18 - Up to 10 SMS Alert and dial numbers, can program to receive specified alarm message.

19.10 authorized numbers can switch on/off device with a free charge call at the specified time; 20 - Inbuilt 8G SD card to save up to 100000 historical data and events; 21 - Inbuilt large capacity automatically rechargeable backup battery; 22 - Industrial class design suitable for long time work applications; 23 - using metal shell, protection class IP30 - Metal shell and system security isolation, especially suitable for industrial applications in the field; 24 - L175 * W88 * H30mm, compatible wall installation and DIN35mm industrial rail installation.
