Zs Stainless Steel Horizontal Single Stage Centrifugal Pump - China

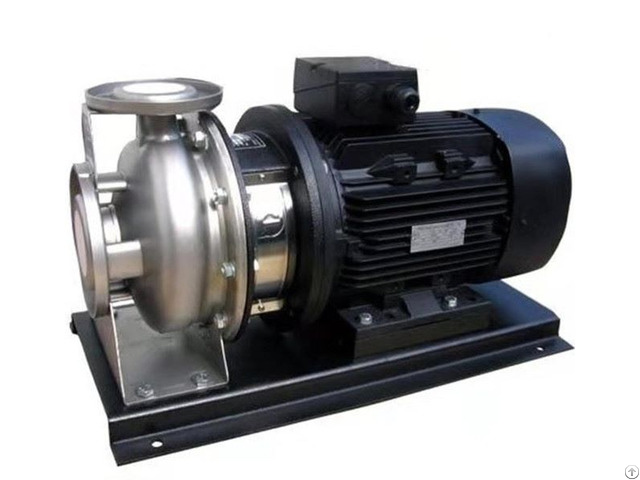

Stainless steel horizontal single stage centrifugal pump

ZS stainless steel horizontal single stage centrifugal pump adopts stainless steel plate stamping expansion welding and other advanced technology.

ZS pump can replace the traditional IS pump and general corrosion resistant pump.

It has beautiful appearance, lightweight structure, high efficiency and energy saving, durable and light corrosion resistance, low noise and other characteristics.

Application:

ZS stainless steel horizontal single stage centrifugal pump has a wide range of application.

It can transport a variety of water or industrial liquids, including different media, suitable for different temperature, flow and pressure range.

The typical applications mainly include the following aspects:

Water supply: water plant filtration, transportation and division of water supply and main pressurization

Industrial supercharging: process water system, cleaning system

Industrial liquid transportation: boiler feed water, condensing system, cooling and air conditioning system, machine tools, acid and alkali transportation

Water treatment: distillation system or separator, swimming pool, etc.

Agricultural irrigation, petrochemical industry, medicine and health, etc.

Installation conditions

ZS stainless steel horizontal single-stage centrifugal pump is for direct connection between pump and standard motor through the shaft:

1) The pump should be installed in a ventilated and ice-proof place

2) The installation of the pump should ensure that the pump is not affected by the tension of the system pipeline when working

3) If the pump is installed outdoors, it must be equipped with a suitable cover to prevent water or condensation of electrical components

4) In order to facilitate inspection and maintenance, there must be enough space around the unit

5) The electrical wiring device should ensure that the pump is not damaged by phase loss, voltage instability, leakage and overload

6) The pump should be installed on the base horizontally.

The horizontal direction is the suction inlet of the pump and the vertical direction is the discharge outlet of the pump.

Operating conditions

Clean, thin, non-flammable, non-explosive liquid without solid particles or fibers

Liquids with temperatures between -20 degree Celsius to 100 degree Celsius

Ambient temperature +40degree Celsius.

High altitude 1000 meters

High pressure of the system is 10bar.

Motor

Motor is fully enclosed, air-cooled two poles standard motor

Protection grade: IP55

Insulation grade: F

Standard voltage: 50Hz 1*220V 3*380V
