Zlb Vertical Axial Flow Pump - China

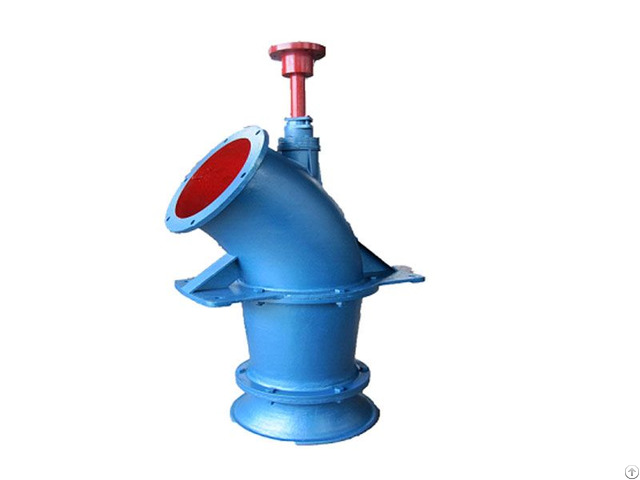

ZLB Vertical Axial Flow Pump Submersible Pump

Large Flow Submersible Pump, Submersible Water Pump, Vertical Axial Flow Pump Features:

The transmission temperature should not be above 50 ℃.

This axial flow pump is a high flow and low head pump.

Application:

1 - Farm irrigation.

2 - Agriculture.

3 - The sewage treatment.

4 - Recycled water of power plant.

5 - Water lift at dock.

6 - Salt plant.

Model description:

350ZLB-6

350 Pump outlet diameter 350 mm

Z Axial flow pump

L Vertical

B Half adjust blade

6 Head 6m

Model list and parameters:

Model Angle of impeller intalled Flow Head Speed Eff.

Power(kW) H n η Shaft power power m3/h L/S m r/min % 14ZLB-70 -4° ~ +4° 882 245 5.5 1450 77.2 17.1 22 -4° ~ +4° 598 166 2.45 980 77.3 5.2 7.5

350ZLB-70 -6° ~ +2° 1210 336 7.22 1450 79.5 29.9 37

350ZLB-100 -6° ~ +4° 1188 330 4.21 1450 80.5 17 22

14ZLB-100D -2° ~ +2° 1145 318 2.4 980 79.1 9.45 11

20ZLB-70 -4° ~ +4° 1610 447 3.48 730 80.1 19.04 30

20ZLB-70DP -4° ~ +4° 2160 600 6.43 980 81.2 46.58 55

20ZLB-100 -4° ~ +4° 2646 735 4.65 980 81.7 41.1 55 -4° ~ +4° 1980 550 2.55 730 79.7 17.2 22

500ZLB-85 -4° ~ +6° 2512 698 5.24 980 85 42.17 55

500ZLB-4 -4° ~ +4° 2365 657 3.95 980 83.4 30.6 45

500ZLB-160 -2° ~ +2° 2491.2 692 2.75 980 81.5 22.9 30

28ZLQ-70 -4° ~ +4° 4500 1250 6.67 730 82.6 99 130

700ZLB-100 -6° ~ +4° 5148 1430 5.8 730 85 95.7 130

700ZLQ-100 -6° ~ +4° 4428 1230 3.02 585 84 43 80

700ZLB-125 -4° ~ +4° 4896 1360 3.6 730 83.8 57.3 80 -4° ~ +4° 3852 1070 2.42 585 83.8 30.3 45

700ZLB-160 -2° ~ +2° 5220 1450 2.78 730 82.6 47.8 60

700ZLB-4 -6° ~ +4° 4860 1350 3.96 730 86 60.9 95

32ZLB-100 -4° ~ +6° 3900 1085 2.86 580 80.8 37.6 55 -4° ~ +6° 3210 892 2 480 80.2 21.8 30

32ZLB-125 -4° ~ +2° 5360 1490 2.12 480 80.8 38.7 80 -4° ~ +2° 6480 1800 3.1 580 80.8 67.7 95

800ZLB-70 -6° ~ +4° 6732 1870 6.36 580 85.5 136.3 155
