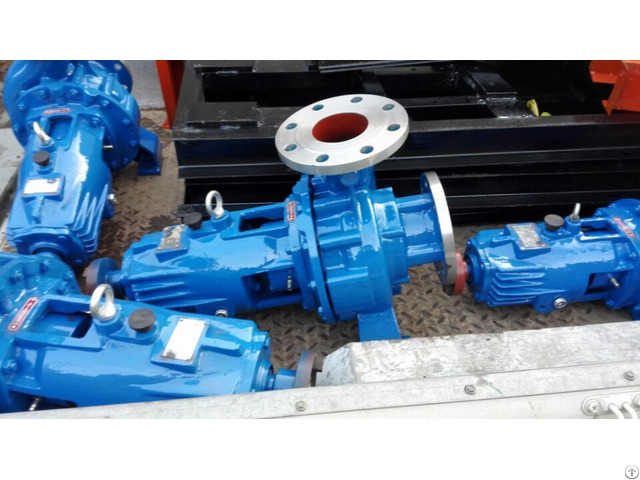

Za Zao Series Petrochemical Centrifugal Stainless Steel Sanitary Pump - China

1 - ZA ZAO high pressure anti-corrosion petrochemical pump API610 standard centrifugal chemical process pump is designed according to AP1610 (8th edition) and VDMA24297(light/medium duty) Application For pumping clean or slightly polluted, cold or hot, chemically neutral or aggressive liquids.

Mainly usage

In refineries, petrochemical industry, coal processing and low temperature engineering.

In chemical industry, fiber and general processing industries, particularly in paper and pulp industries, sugar industry.

In water industry, particularly seawater desalination plants.

In heating and air-conditioning.

In fossil and nuclear power - stations.

Condition protective project.

In ship and offshore industries.

Operating data

Size 25 - 400mm

Capacities Q up to 2600 m3/h

Heads H up to 250m

Operating Pressures p up to 2.5 Mpa

Operating Temperature - 20 up to +180 DegC

Centerline support – 20 DegC to + 450DegC Structure

Single - stage horizontal radial split volute casing pumps with feet below and single - entry radial impeller, and suction branch radially upwards discharge branch.

Depending on operating conditions hydraulic balance is provided by front or rear wear rings and balance holes.

Casing cover with cooling or heating connection, shaft sealing by packing seals or mechanical seals of any design (single or double working), connections for cooling, flushing or sealing liquid.

Standardized pipework is designed according to API plans.

Cooling of baseplate pedestal possible.

Flanges possible according to DIN or ANSI.

Same nominal pressure for suction and discharge flanges.

Direction of rotation clockwise seen from drive Pumping Medium

Sulphuric acid, nitric acid, hydrochloric acid; phosphoric acid for organic acid and inorganic acid which at various temperature and concentration.

All kinds of salt solution.

Sodium hydroxide, sodium carbonate and alkaline liquid at various temperature and concentration.

Various liquid petrochemical, organic compound as well as raw materials with corrosion and products

At present.

anti - corrosive materials.

For pumps provided by our plant can meet all the requirements of the medium mentioned above.

Please provide the detail service conditions for the pump to use.

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
