Ycb G Series Heat Insulating Gear Pump - China

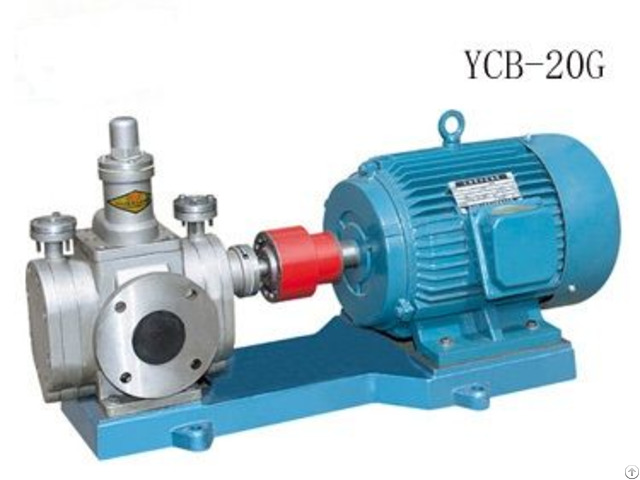

YCB-G Series heat insulating gear pump

YCB-G Series heat insulating gear pump is used to transfer different medium such as heavy oil, asphalt, resin, detergent and glue which is easily solidified at normal temperature and the medium does not contain solid particles.

The medium temperature is not higher than 300 degree Celsius.

The pump is also suitable for the site with heat insulated requirement in the process technology and outdoors installation at very cod area.

YCB-G Series heat insulating gear pump belongs to external gear pump.

The tooth form is composite formed by arc and sine curve.

It can transfer many kinds of medium with steady output flow and pressure.

There are heat insulating jacket and inlet and outlet joints on the pump casing.

Heat insulating can adopt the media such as heat conducting oil, steam, hot water and cold water to heat, keep warm and cooling the transferred medium for pump.

When the viscosity of transferred medium is larger than 1500CST, pump rotary speed should be reduced.

Specification sheet:

Model FLOW Speed Pressure 　 Efficiency Motor Q n p NPSHr η 　 r/min Mpa 　 % m3/h 　 　 m 　 Frequency Power KW Model 　 　 　 　 Hz YCB0.6-0.6 0.6 910 0.6 5.5 32 50 0.75 Y90S-6 1 1390 50 0.75 Y80L2-4 0.7 1130 60 0.75 Y90S-6 1.2 1710 60 0.75 Y80L2-4

YCB0.6-1.6 0.6 910 1.6 7 70 50 1.1 Y90L-6 1 1400 50 1.5 Y90L-4 0.7 1130 60 1.1 Y90L-6 1.2 1710 60 1.1 Y90S-4

YCB1.6-0.6 1.6 910 0.6 5.5 42 50 0.75 Y90S-6 2.5 1400 50 1.1 Y90S-4 1.9 1130 60 1.1 Y90L-6 3 1710 60 1.5 Y90L-4

YCB1.6-1.6 1.6 940 1.6 7 71 50 2.2 Y112M-6 2.5 1440 50 4 Y112M-4 1.9 1150 60 2.2 Y112M-6 3 1750 60 4 Y112M-4

YCB3.3-0.6 3.3 940 0.6 5 60 50 1.5 Y100L-6 5 1420 50 2.2 Y100L1-4 4 1150 60 1.5 Y100L-6 6 1730 60 2.2 Y100L1-4

YCB3.3-1.6 3.3 960 1.6 7 72 50 5.5 Y132M2-6 5 1440 50 7.5 Y132M-4 4 1170 60 4 Y132M1-6 6 1750 60 7.5 Y132M-4

YCB4-0.6 4 940 0.6 5 60 50 1.5 Y100L-6 6 1420 50 2.2 Y100L1-4 4.8 1150 60 2.2 Y112M-6 7.2 1730 60 3 Y100L2-4

YCB4-1.6 4 960 1.6 7 72 50 5.5 Y132M2-6 6 1440 50 7.5 Y132M-4 4.8 1170 60 5.5 Y132M-6 7.2 1750 60 7.5 Y132M-4

YCB8-0.6 8 960 0.6 5 61 50 3 Y132S-6 12 1440 50 5.5 Y132S-4 9.6 1170 60 4 Y132M1-6 14.4 1750 60 5.5 Y132S-4

YCB8-1.6 8 970 1.6 7 75 50 11 Y160L-6 12 1460 50 15 Y160L-4 9.6 1170 60 11 Y160L-6 14.4 1760 60 15 Y160L-4

YCB10-0.6 10 960 0.6 5 62 50 4 Y132M1-6 15 1440 50 5.5 Y132S-4 12 1170 60 5.5 Y132M2-6 18 1750 60 7.5 Y132M-4

YCB10-1.6 10 970 1.6 7 76 50 11 Y160L-6 15 1470 50 15 Y160L-4 12 1170 60 11 Y160L-6 18 1770 60 18.5 Y160L-4

YCB20-0.6 20 970 0.6 5 68 50 7.5 Y160M-6 24 1170 60 7.5 Y160M-6

YCB25-0.6 25 970 0.6 5.5 69 50 11 Y160L-6 30 1170 60 11 Y160L-6

YCB30-0.6 30 970 0.6 5.5 70 50 11 Y160L-6 36 1170 60 11 Y160L-6

YCB40-0.6 40 970 0.6 5.5 72 50 15 Y180L-6 48 1180 60 15 Y180L-6

YCB50-0.6 50 970 0.6 5.5 72 50 22 Y200L2-6 60 1180 60 22 Y200L2-6
