Wide Range Of Performance Submersible Slurry Pump - China

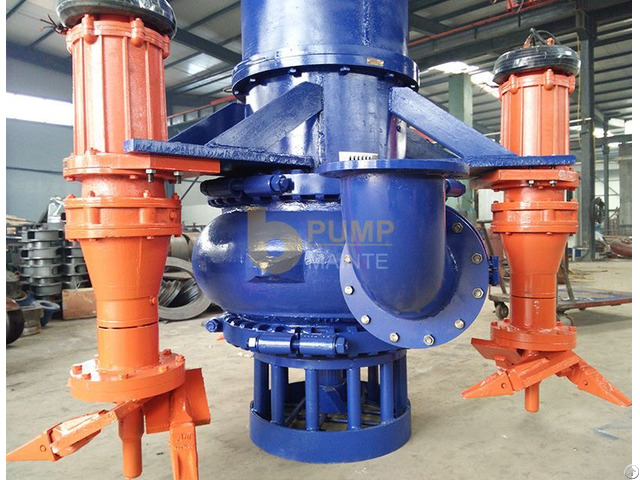

Wide range of performance Submersible Slurry Pump

Structural characteristics

ZJQ series submersible slurry pump is a submersible structure with submersible motor and protection control device.

The pump head is made of high-chromium and sturdy metal materials.

According to different conveying media, closed impeller or open impeller is used.

Wide range of performance, easy to install, divided into mobile and rail-mounted installation.

Applicable working conditions

Applicable to mining, metallurgy, electric power, biogas engineering, kitchen processing, etc., can transport abrasive, corrosive, coarse particles, high concentration slurry.

Submersible Water Pump Factory: shijiazhuang mainte slurry pump co., ltd

Performance range

Discharge range: 50 ~ 250mm

Flow range: 15~950m3/h

Head range: 7 ~ 85m

Submersible slurry pump General Description

Type ZQ/ZJQ/ZGQ submersible slurry pumps are designed for continuously handling the most difficult higher abrasive slurries, high density slurries, mud slurry, long fiber.

They are suitable for delivering slurries in Dredging in dredger and course of rivers, mining, steel, coal, power plant, bridge building and other industrial department, etc.

Construction

Construction of this pump are of single casing or double casing, The wet-parts are made of high chrome abrasion-resistance alloys.

The pump is supplied with three kinds of impeller for selection: open impeller, closed impeller, no clogging impeller.

The pumps can be matched with mixers.

Type ZQ Open impeller Performance table

Type QCapacity(m3/h) Head(m) Speed(r/min) Power(Kw) Particle(mm)

50ZQ20-10-4/4 20 10 1450 4 15

80ZQ30-30-7.5/4 30 30 1450 7.5 20

80ZQ70-25-11/4 70 25 1450 11 25

80ZQ80-25-15/4 80 25 1450 15 25

100ZQ90-25-18.5/4 90 25 1450 18.5 25

100ZQ100-25-22/4 100 25 1450 22 25

100ZQ150-25-30/4 150 25 1450 30 30

100ZQ200-28-37/4 200 28 1450 37 30

200ZQ300-20-45/4 300 20 1450 45 30

100ZS125-12-15/8 125 12 740 15 32

100ZS170-22-37/6 170 22 980 37 32

150ZS290-17-45/8 290 17 740 45 45

150ZS400-30-75/6 400 30 980 75 45

200ZS500-27-90/8 500 27 740 90 65

250ZS950-27-185/8 950 27 740 185 65
