Vs Vertical Slurry Pump - China

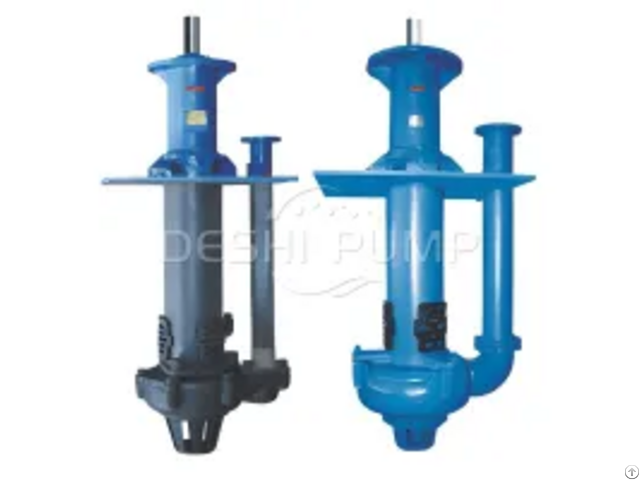

VS Vertical Slurry Pump

Vertical Slurry Pump is a cantilever sump pump, which work submerged to transport high abrasive and high density slurries with large particles.

It doesn't need any seal water.

Hard metal lined or fully rubber lined fitted.

High capacity double suction semi-open impeller design.

Suction agitator is also available.

Size (discharge): 40mm to 300mm

Capacity: 7.28-1300 m3/h

Head: 3m-45 m

Handing solids: 0-79mm

Concentration: 0%-70%

Materials: High chrome alloy, Rubber Design features:

1 - Vertical, Submerged, Cantilevered shaft sump slurry pump

2 - Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones.

3 - Column Assembly - Completely fabricated from anti-wear carbon steel.

The VSR model is rubber covered.

4 - Shaft - Different length of the pump drive shaft or suction extension pipe could be selected.

5 - Casing - VS(R) has a simple bolt-on attachment to the base of the column.

It is manufactured from a wear resistant alloy for the VS pump series and from moulded Rubber for the VSR pump series.

6 - Impeller - Double suction semi-open impeller design, Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable.

7 - Upper Strainer - Drop-in metal mesh; snap-on elastomer or polyurethane for VS and VSR pumps.

Strainers fit in column openings.

8 - Lower Strainer - Bolted metal or polyurethane for VS pumps; moulded snap-on elastomer for VSR pumps.

9 - Discharge Pipe - Metal for VS pumps; Rubber covered for VSR pumps.

All wet metal parts are completely rust protected.

10 - Agitator option keeps solids in suspension, Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.

11 - Don’t need any seal and seal water.

Invest in our submersible slurry pump with agitator and enjoy peace of mind knowing you have a reliable and efficient pumping solution for your toughest applications.

Contact us today to learn more and get your hands on this top-quality submersible pump for sludge.
