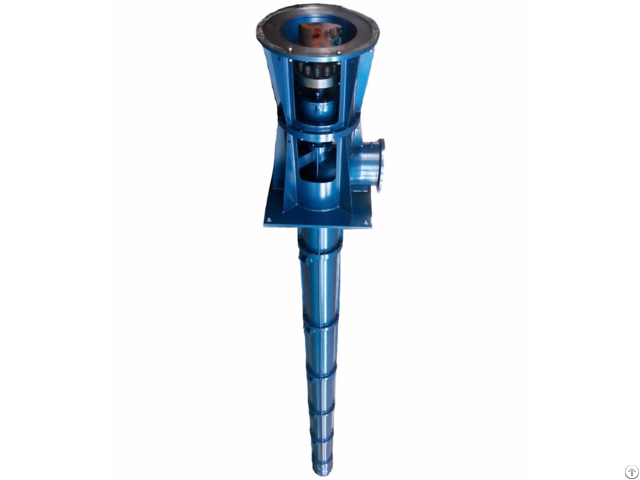

Vertical Long Shaft Pump

Submersible Pump

Hot sale various high quality ertical Long Shaft Pumps from China leading manufacturer.

Our Vertical Long Shaft Pump is safe and reliable, cost effective and deliver more benefits.

Welcome to choose us! Application:

This series pumps are used to transfer clear water, rain water, water in iron sheet pits, sewage and seawater, servicing in power plants, iron and steel works, water supply companies, sewage treatment plants, petroleum and chemical industries mines as well as municipal water supply and drainage projects, farmlands irrigation, flood protection and drain waterlogged farmlands, etc .

The temperature of pumped media is 90℃ by special design, the capacity is 30-9000m³/h, the head is 5-220m.

it accords with the China town construction industry standard of CJ/T238-2006 for 《Vertical long shaft pump》, it owns the cycle lubrication bearing arrangement of patent.

(patent code: 200620050566.6) Features:

1 - Operation smooth, safe and reliable, starting without exhausting vacumn, service life long.

2 - The volume of the pump small, less occupied land area, the length under foundation adjustable, applicability strong.

3 - Flowing channel simple and reliable, saving the investment for construction of the pump house.

4 - Structure reasonable, convenient for mounting and dismantling, easy to maintain and inspect.

5 - Efficiency high, operating cost reduced.

6 - Higher standard, and stronger generality for component.

Structure feature:

1 - Series LK, LB pumps are of vertical single stage and/or multistage centrifugal or mixed flow with diffuser types.

2 - The following structure types are available for the pump: the discharge opening above and/or under the mounting foundation(Type Code named S and X respectively);the axial thrust force born by the pump and/or by the motor(Type Code named T and D);lubricating water from outside and/or from the pump itself.

3 - The intake sump is of wet pit and/or dry pit types.

Wet pit type: lower part of the pump inundated in the intake sump.

Dry pit type: the water enters into the pump, the suction bellmouth is connected with the inlet pipe of the pump by means of elbow bend pipe of 900.

4 - Rubber guide bearings and /or the Thordon guide bearings are available for bearings of the pump.

5 - Generally when the nozzle diameter of the pump is under 1000mm, non pull-out type is adopted for the rotor and the discharge opening is above the mounting foundation(Type Code named ST).

In this case the axial thrust force and the weight of the rotor are usually born by thrust bearings of the pump itself and flexible connection is adopted between the pump and the motor.

The thrust force and the weight of the rotor can also be born by the motor if required, or other structure types such as SD, XT, XD are available .

Rotor pull-out type can also be adopted if required by clients.
