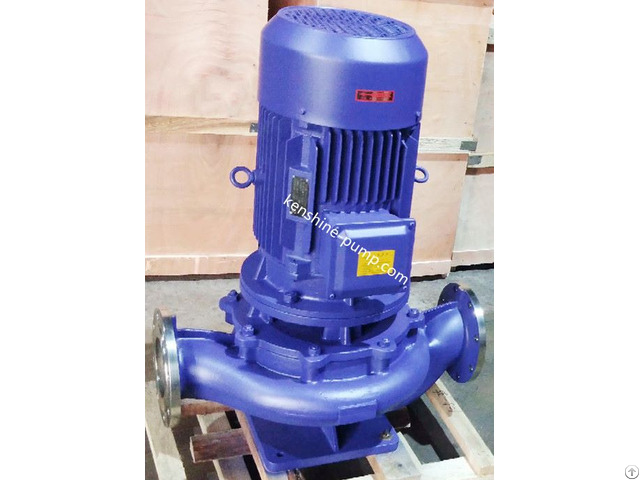

Vertical Inline Centrifugal Pipeline Pump - China

ISG pipeline pumps are used to transport clean water, free of solids and other similar liquids with physical and chemical properties to water.

At the same time, according to the operated temperature, medium etc.

Different ISG type pipeline centrifugal pumps are based on the different application of hot water, high temperature, corrosive chemical pumps, oil pumps.

ISG pump has the same energy saving, low noise and stable performance.

It adopts the excellent hydraulic model and the performance parameters of the IS single-stage centrifugal pump and is designed with normal vertical structure.

ISG Vertical inline centrifugal pumps have the advantages of high efficiency, low noise and reliable performance.

It complies with the JB/t53058-1993 standards and is designed and manufactured according to ISO02858 standard.

ISG pipeline pump - main features:

1, vertical pipe centrifugal pump compact structure, small size, beautiful appearance.

The structure determines the installation area is small.

If a protective cover is added, leave it outside.

2 - The impeller is directly mounted on the motor shaft to ensure the concentricity of the pump, thus improving the running stability of the pump and extending the service life of the pump.

3 - Mechanical seal or combination of mechanical seal shall be used for shaft seal.

High quality hard alloy sealing ring, improve the wear resistance of seals, effectively extend the service life of the pump.

4 - Easy installation and maintenance, no need to remove the piping system.

The pump inlet and outlet have the same diameter, simplifying the connection of the pipe.

5 - Series and parallel operation of pumps can be adopted according to flow and head requirements.

6 - The inlet and outlet can be installed in the same direction or in different directions of 90°, 180° and 270° according to the need, to meet different connection occasions.

7 - The pump head can be increased or decreased according to the needs of the pump level and combined with the outer diameter of the cutting impeller, without changing the installation footprint, which is not available in other pumps.

ISG pipeline pumps -application

1 - ISG pipeline pumps are used to transport clean water and other liquids with physical properties similar to clean water.

It is Suitable for industrial and urban water supply and drainage, pressurized water supply for high-rise buildings, sprinkler irrigation for gardens, fire fighting, long-distance water supply, heating, toilet and other cold and warm water circulation pressurized equipment supporting.

The operating temperature is T <80°C.

2, IRG vertical hot water (high temperature) hot water circulation pump.

It is suitable for energy, metallurgy, wood processing, chemical industry, textile, paper and restaurants, bathrooms, hotels and other boilers hot water pressurized circulation and urban heating system circulation pump, IRG medium temperature shall not exceed 120°C.

3, IHG vertical pipeline chemical pump is used for conveying liquid without solid particles, corrosive, viscosity similar to water, suitable for petroleum, chemical industry, metallurgy, power, paper, food, medicine and synthetic fiber industries, operating temperature of -20° C~ + 120°C

IHGB stainless steel explosion-proof chemical centrifugal pump is suitable for conveying flammable and explosive chemical liquid.

5 - YG vertical pipeline oil pump is used for transporting petroleum products such as gasoline, kerosene and diesel.

The temperature of the medium to be transported is -20℃ ~ + 120℃.

6, ISGD, IRGD, GRGD, IHGD, YGD, IHGBD vertical low speed centrifugal pump is suitable for low environment sound requirements and air conditioning circulation occasions.
