Tobee® Ah4x3d Horizontal Slurry Mud Sand Pump - China

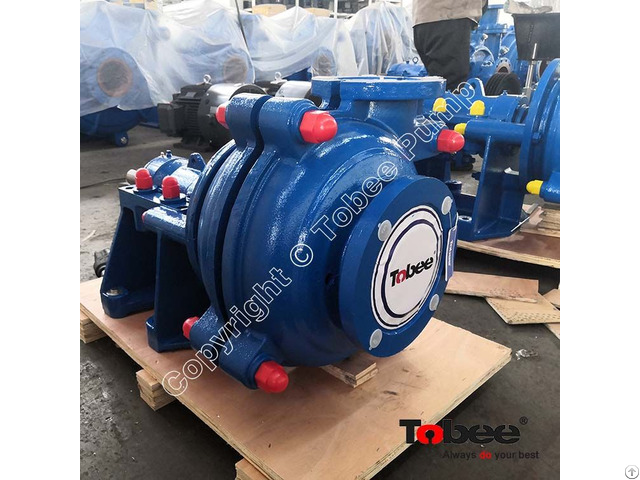

Tobee® 4x3D-AH Slurry Pump is a standard horizontal dewatering pump for pumping abrasive slurries, designed for ultra heavy duty applications such as mill discharge, process plant and tailings, high pressure pipelines, as well as other specialty applications.

Bearing assembly use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired.

Bearings use grease lubrication.

The shaft seal could use the packing seal, centrifugal seal and mechanical seal.

The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

Wide performance, good NPSH and high efficiency, the pump of this type may be installed in multistage series to meet the delivery for long distance Detailed specification: 1 - Horizontal, cantilevered, centrifugal, single stage slurry pump.

2 - Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

3 - Wear resistant and anti abrasion wet parts: High chrome alloy and rubber etc.

They are completely interchangeable with each other.

4 - Easily replaceable liners: Liners are bolted to the casing.

5 - Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.

6 Discharge direction can be positioned at intervals of 45 degrees.

7 - Simple maintenance throat bush: the mating face of the throat bush is tapered, so the wear is reduced and removal is simple.

8 - Sealing type: pcking seal, impeller sealing and mechanical seal.

9 - Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
