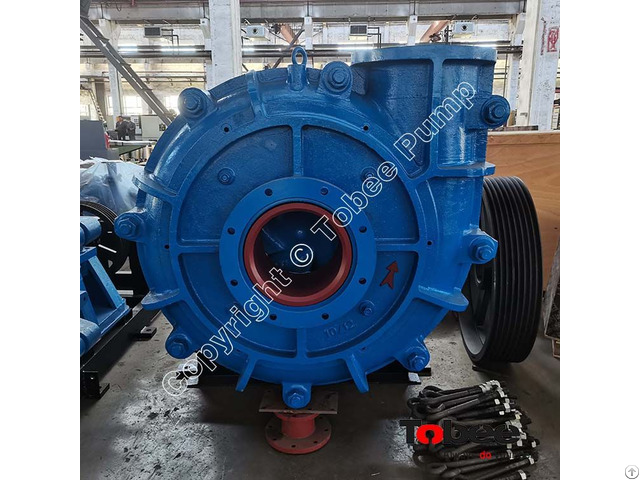

Tobee® Ah12x10 Rubber Lined Horizontal Centrifugal Slurry Pumps - China

Tobee® AHR10/8ST Rubber Lined Slurry Pump is cantilevered, horizontal, centrifugal slurry pumps for handling of highly abrasive, high-density slurries and support multistage serial installation.

They feature frame and cover plates made out of grey cast iron or ductile cast iron (based on the pressure requirements) with replaceable wear-resistant rubber liners, rubber impellers, 8 position discharge branch and gland or expeller type shaft seals.

Additionally they are available with several drive types such as DC (direct connection), V-belt drive, gear box reducer, hydraulic couplings, VFD, SCR control, etc.

They are commonly used in metallurgical, mining, coal, power, construction material and similar industries.

Design Features: √ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.

√ Ductile iron fully lined casing provides durability, strength, safety, and long service life.

√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.

√ Large, open internal passages designed to reduce internal velocities, maximise wear life and lower operating costs.

√ Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximise wear life.

√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.

√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the slurry pump, resulting in reliable operation and prolonged bearing life.

√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.

√ Optional dry running shaft seal reduces or eliminates flush water requirements.

√ Effective expeller prolongs packing life while reducing or eliminating flush water requirement.

√ Interchangeability of seal arrangements – full flush, low flow, centrifugal, or mechanical seals may be fitted to any sized slurry pump.

Tobee® 10x8 AHR Rubber Lined Slurry Pumps Performance Parameters:
