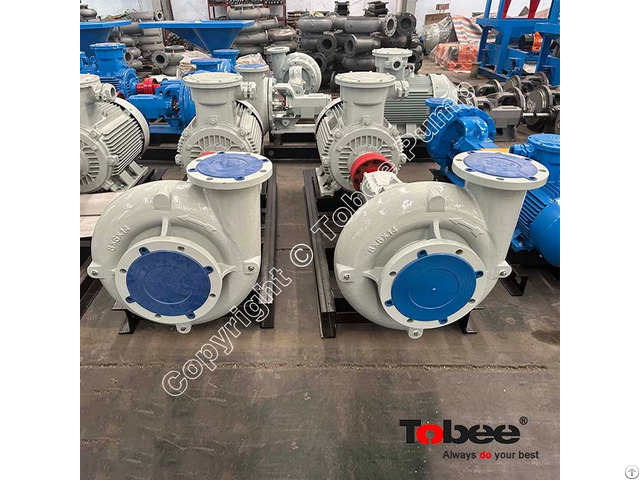

Tobee 8×6 Offshore Centrifugal Transfer Pump For Oil Rigs - China

Sandman™ 8×6 Equivalent NOV Mission Centrifugal Transfer Pump is widely used for provide drilling liquid with a certain discharge capacity and pressure to sand, desilter and mud mixer.

MISSION Magnum I pumps are proven as reliable, heavy-duty, low-cost slurry pumps.

The 3x2x13 through 8x6x14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements.

Standard models are equipped with a heavy-duty 2½-in.

alloy steel shaft protected from wear by a stainless-steel shaft sleeve, double-row outboard bearings, and inboard roller bearings.

They are rated for continuous service in applications up to 200 hp and are available in hard iron, stainless steel, aluminum bronze, and high Chrome with capacities up to 3, 400 gal/min and pressure head up to 550 ft.

Some sizes can be offered in a counterclockwise rotation giving the user more flexibility.

Tobee® Mission Magnum I Pumps are proven as reliable, heavy-duty, low-cost slurry pumps.

The 3×2×13 through 8×6×14 pumps all feature the same power end, which ensures production and reduced spare-part inventory requirements.

The Mission MAGNUM I has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications.

The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional pump in use today.

The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids.

The Magnum is available in Magnachrome™, hard iron, stainless steel, and aluminum bronze fluid ends.

The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).

Also available, Horizontal and Vertical Close Coupled Magnum.
