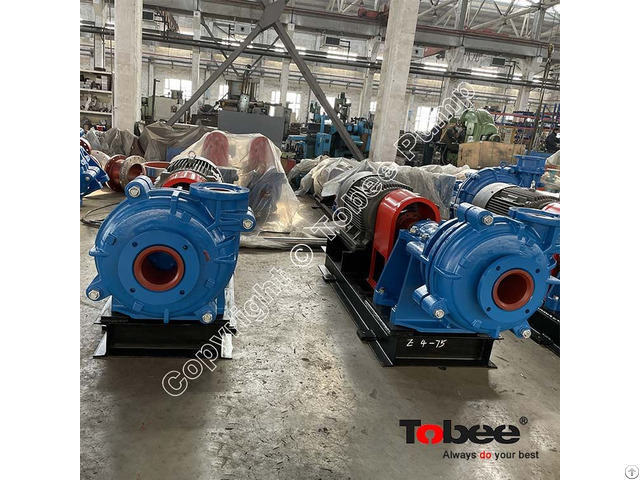

Tobee® 6 4 Inch Ah High Density Sand Slurry Pump - China

Tobee® 6/4 AH Slurry Pumps Design Features: √ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.

Only four through bolts are required to hold the cartridge type housing in the frame.

√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.

Hard metal liners are completely interchangeable with pressure moulded elastomer.

√ Elastomer seal rings back all liner joints.

√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

Hard metal and moulded elastomer impellers are completely interchangeable.

√ Cast in impeller threads require no inserts or nuts.

High efficiency and high head designs are also available.

√ Throatbush - wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

√ One-piece frame - a very robust one-piece frame cradles the cartridge type bearing and shaft assembly.

√ An external impeller adjustment mechanism is provided below the bearing housing for easy adjustment of impeller clearance.

Company Contact:

• Posted By: Hebei Tobee Pump Co.,Limited

• Phone: +86-18132613960

• Address: shijiazhuang , shijiazhuang , 河北 , China

• Email:

• Website: https://missionmagnum.com/

• Business Description: Hebei Tobee Pump Co.,Limited

  That is a professional manufacturer in designing and manufacturing Centrifugal Slurry Pumps, Pipes & Fittings, Valves etc.

  Our factory is located in the High tech Development Zone, Shijiazhuang City, China.

  We specialized in Horizontal slurry pumps, Vertical slurry pumps, Gravel sand pumps, Dredging pumps, Paper pulp pumps, Molten Salt Pumps, End suction pumps, Double suction pumps, Multistage pumps, Boiler feed water pumps, Self priming pumps, Inline centrifugal pumps, Sea water pumps, Chemical pumps, Irrigation pumps, Fire pumps, API 610 centrifugal oil pumps, Submersible sewage pumps, Slurry Pump spare parts, Pipes & fittings and Valves in domestic and over 80 countries in the world.
