Tobee® 20612 02 33 Shaft For Mission Magnum Centrifugal Pumps - China

P/n: 20612-02-33 (646490557) shaft for mission magnum centrifugal pumps and 2500 supreme pumps.

tobee® offers a complete line of centrifugal sand pumps to suit for all kinds of drilling sand pump application.

size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11, 6x5x14, 8x6x11, 8x6x14, 10x8x14, 12x10x23 to 14x12x22b.

bare pumps, matching motors are available from 7.5kw to 90kw, with rotation 800, 1000, 1150, 1450, 1750 to 3500 rpm at 50hz or 60hz.

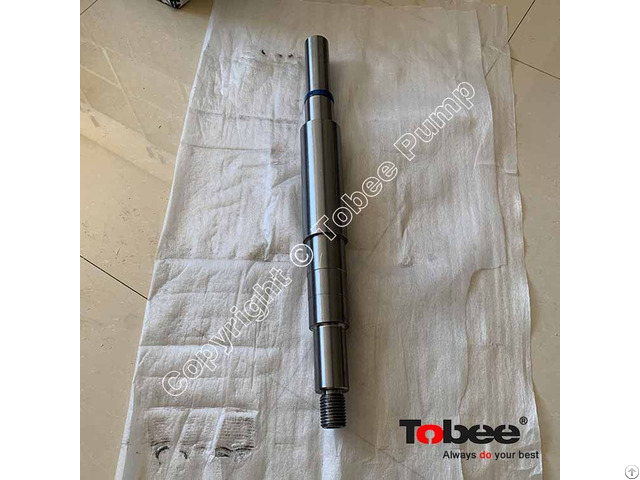

20612-02-33 (646490557) shaft.

the model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid.

8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump.

6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs.

4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump.

3x2x13 model pump is usually used as clean water pump.

mission magnum parts list: item qty part no.

processing# description material 1* 1 see below see below casing hard iron 1a 1 10399-46-1 648403012 gasket, casing vellumoid 1b 12 3932-61 648402014 nut, casing stl 1c 12 3862-76 648401115 stud, casing stl 1d 1 8505-04-01 86485503 plug, casing drain stl 1e 1 8505-04-01 646400507 plug, flush line stl 2* 1 see below see below impeller hard iron 2a 1 19110-72 64845082 seal, impeller viton 2b 1 7300239 washer, impeller stl 2c 1 7415648 bolt, impeller lock stl 3* 1 22223-01-30 641116157 stuffing box, mech.

seal hard iron 3* 1 20614-01-30 643365042 stuffing box, packed hard iron 3a 2 3861-117 648401016 bolt, stuffing box stl 3b 1 19368-01 601499403 grease fitting brass 4 1 20622a 641103338 gland assy, packing stl 304
