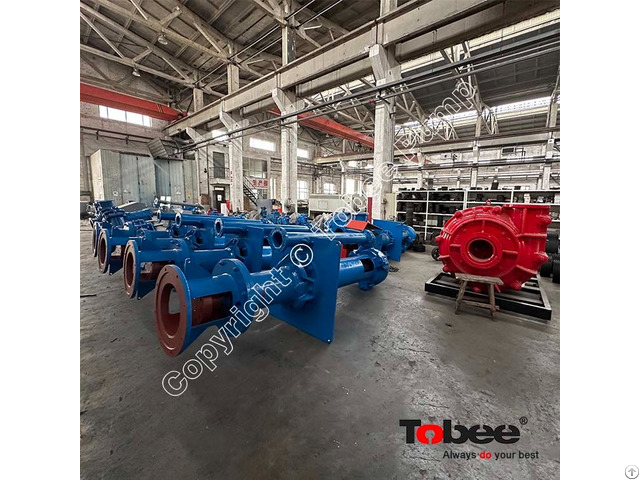

Tobee 150sv Sp Vertical Centrifugal Slurry Pump - China

Tobee® SP/SPR vertical slurry pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer.

Fully elastomer lined or hard metal fitted.

No submerged bearings or packing.

High capacity double suction design.

Customized submerged length and suction agitator available.

The SP/SPR vertical sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.

Design Features: • Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones.

The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger.

The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float.

This high performance bearing arrangement and robust shaft eliminates the need for a lower submerged bearing.

• Column Assembly - Completely fabricated from mild steel.

The SPR model is elastomer covered.

• Casing - Has a simple bolt-on attachment to the base of the column.

It is manufactured from a wear resistant alloy for the SP and from moulded elastomer for the SPR.

• Impeller - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids.

Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable.

The impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet.

No further adjustment is necessary.
