Th4 3d Centrifugal Chokeless Slurry Pump For Clarified Juice - China

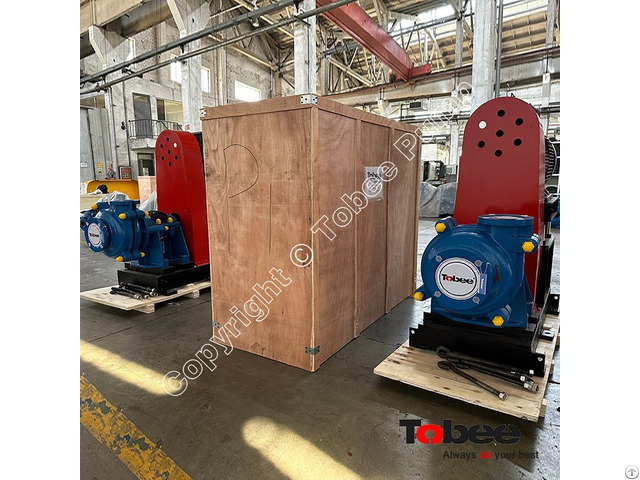

TH4/3D Slurry Pump is a standard horizontal dewatering pump for pumping abrasive slurries, designed for ultra heavy duty applications such as mill discharge, process plant and tailings, high pressure pipelines, as well as other specialty applications.

Bearing assembly use cylindrical structure, which helps adjust the space between impeller and cover plate liner easily, and being removed completely when being repaired.

Bearings use grease lubrication.

The shaft seal could use the packing seal, centrifugal seal and mechanical seal.

The discharge side can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

Wide performance, good NPSH and high efficiency, the pump of this type may be installed in multistage series to meet the delivery for long distance.

Tobee® TH Series Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications.

The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handling high abrasive, high density slurries.

Design Features: √ Bearing assembly - a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life.

Only four through bolts are required to hold the cartridge type housing in the frame.

√ Volute Liners - easily replaceable liners are bolted, not glued, to the casing for positive attachment and east of maintenance.

Hard metal liners are completely interchangeable with pressure moulded elastomer.

√ Elastomer seal rings back all liner joints.

√ Pump casing - Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety.

√ Impeller–front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.

Hard metal and moulded elastomer impellers are completely interchangeable.
