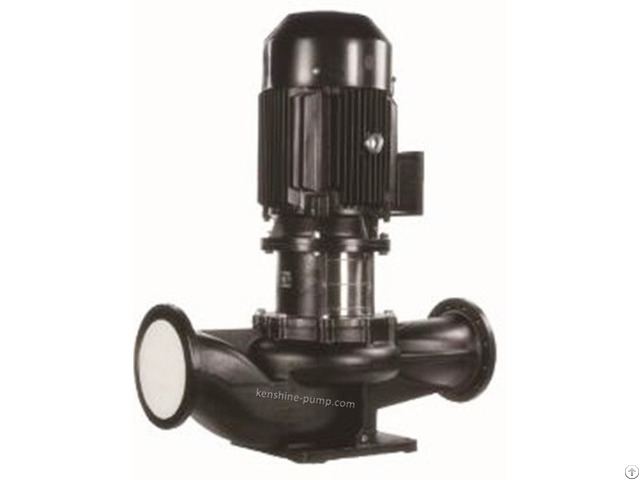

Td Inline Single Stage Pipeline Centrifugal Pump - China

TD vertical pipeline centrifugal pump is the upgrade vertical single-stage pipeline centrifugal pump.

The pump is equipped with standard motor and mechanical seal.

Compared with the previous generation of products, this pump has a wider operating curve, higher efficiency and less susceptible to impurities in the liquid.

TD Vertical pipeline centrifugal pumps are designed as pipeline structure which can be pulled out at the top.

The pumps adopt innovative detachable mechanical seals, replacing mechanical seals without removing motors.

Features Compact and beautiful.

Introduction of a new generation of foreign pipeline centrifugal pump model, performance has been greatly improved, the structure is more compact, with IE2/IE3 efficient energy-saving motor, more beautiful and efficient.

Easy installation and maintenance.

Classic pipeline structure design, the same level of inlet and outlet, more convenient installation, general maintenance can not remove the pipeline system.

Low noise.

IE2/IE3 high efficiency energy-saving motor, not only higher efficiency, lower noise.

Detachable structure.

TD vertical pumps are adopted disassembly structure design, mechanical seal maintenance can not remove the pipeline and pump body, convenient and applicable.

Performance range: Flow range: 4m3/h to 1200m3/h Head range: 4.5m to 108m Power range: 1.1kw to 200kW Liquid temperature: -15 degree Celsius to 110 degree Celsius Frequency: 50 hz / 60 hz Typical applications Industrial water treatment District heating HVAC Building water supply Municipal water supply and drainage desalination Other industrial applications
