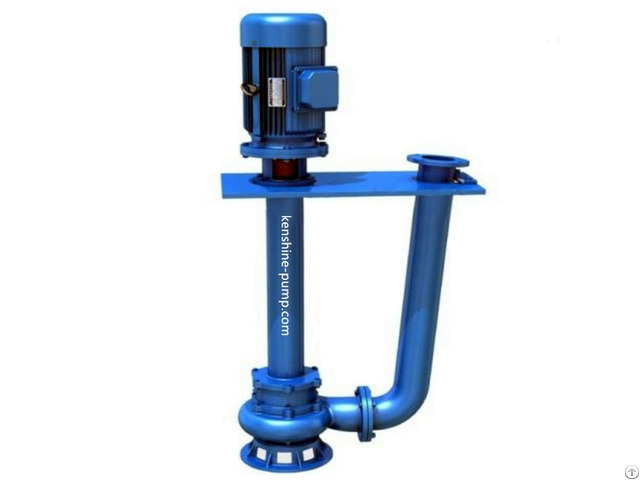

Submerged Sewage Pump With Single Or Double Pipe - China

Wastewater or sewage treatment pump

YW non-clogging submerged sewage pump has the obvious energy-saving effect, anti-winding, no clogging, automatic installation and automatic control etc.

characteristics.

It is used to discharge the wastewater or sewage with solid particles and long fiber etc.

dirt.

YW sewage submerged pump adopts unique impeller structure and new mechanical seal, which can effectively transport wastewater or sewage with solid and long fiber.

The impeller adopts single flow channel or double flow channel, which is similar to a bend pipe with the same cross section size and has very good overflow performance.

Equipped with a reasonable volute chamber, the pump has high efficiency and the impeller has been tested by dynamic and static balance, so that the pump has no vibration in operation.

Features:

1 - Adopting a unique single-blade or double-blade impeller structure, it greatly improves the ability of sewage to pass and can effectively pass fiber of 5 times pump diameter and solid particles with the diameter of about 50% of the pump diameter.

2 - The mechanical seal is made of new hard and corrosion-resistant tungsten carbon material, which can make the pump run for more than 8000 hours.

3 - YW non-clogging sewage pump has compact structure, small volume, small noise, significant energy saving effect, convenient maintenance, no need to build pump room.

It can work when submerged in water, greatly reducing project cost.

4 - The submerged sewage pump has compact structure, small volume, convenient movement and simple installation.

5 - It can be equipped with automatic liquid level control cabinet, which can automatically control the start and stop of the pump according to the required liquid level change.

It is very convenient to use without special care.

6 - YW type no-clogging sewage pump is of vertical structure.

The pump body is immersed in liquid during operation, so it is easy to start.

7, Shaft structure is advanced and reliable.

Pump and motor are connected by shaft coupling, the size of the pump shaft is precision to ensure the smooth and safe operation of the pump.

8, YW sewage submerged pump has a single pipe installation and double pipe installation and supporting part has disk and square plate installation for different needs.

Application

Suitable for chemical, petroleum, pharmaceutical, mining, paper industry, cement plant, steel plant, power plant, coal processing industry, as well as urban sewage treatment plant drainage system, municipal engineering, construction site and other industries to convey wastewater, sewage containing solid particles, fiber etc.

dirt and it is also used for pumping clean water and corrosive liquids.

Working conditions:

Liquid temperature is no higher than 70 Degree Celsius.

Liquid density: 1 to 1.3kg/dm3.

Cast iron pump is for wastewater PH 5 to 9 and stainless-steel pump is suitable for corrosive wastewater or sewage.

Submerged pipe length: normal 1meter and can be added up 5meters according to demands.

Model explanation:

100YW100-25-11

100 mean pump outlet(100mm)

YW means Submerged sewage pump

100 means pump discharging flow rate(100m3/h)

25 means pump delivery head(25m)

11 means motor power(11kw)
