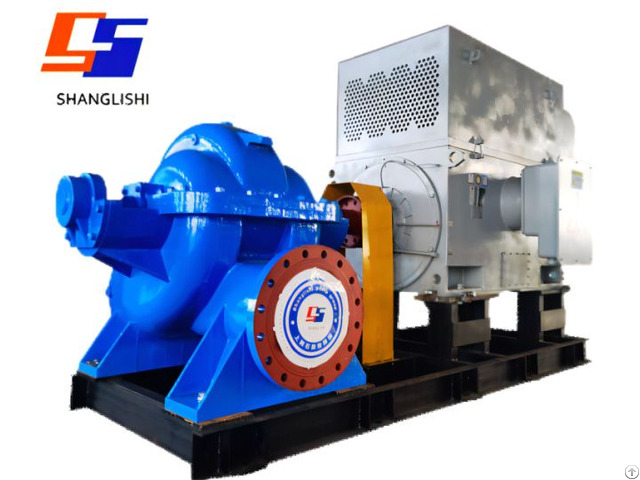

Som Series Double Suction Pump - China

Inlet/Outlet diameter: 150-1600mm

Capacity: 74-23500m³/h

Head: 7-306m

Speed: 720, 990, 1480 and 2960r/min

Power: 15KW--2500KW

Materials: Cast iron or stainless steel SS304, SS316, SS316L.

Product Description

★ SOM series are single-stage double-suction centrifugal pumps of split case type.

The pump adopts a linear design with reinforcing ribs, which makes the pump structure more reasonable, beautiful in appearance and stable in installation.

The short bearing distance improves the rigidity of the shaft.

ensuring the unit runs smoothly, with little vibration and low noise.

The design of fully sealed pump shaft prevents the pump shaft from contacting with the conveying medium, thereby ensuring that the pump shaft is not rusted, easy to disassemble and assembled, and has a long service life.

★ Our double suction pump series was awarded as high quality and qualified products by the Pump Industry Association.

★ It is suitable for conveying clear water without solid particles or other liquids with physical and chemical properties similar to water.

It can be widely used in various fields such as metallurgy, mining, steel, electric power, petroleum, coal, chemical industry and urban water supply and drainage.

★ The SOM range is available in 615 sizes with flow rates of 74-23, 500m³/h, heads of 7-306m and bores up to 1600mm.

★ SOM series pumps are characterized by reliable performance.

energy saving, convenient maintenance and long service life, and have been favored by users since they were put into the market.

★ Part of the bearing body adopts a split structure.

Open the pump cover and the upper cover of the bearing body.

and the whole rotor can be taken out.

which is easy to adjust and maintain.

★ There are two kinds of shaft seal structures: mechanical seal and packing seal, and special sealing methods can also be used according to user needs.

★ The frame plate and cover plate are made of resin sand.

which ensures the precise shape of the casting and the size of the flow channel.

smooth surface, and improves the hydraulic efficiency.

★ The pump adopts an excellent hydraulic model and adopts OFD optimization design.

which improves the hydraulic efficiency of the pump and improves the cavitation performance of the pump.

★ The finite element method is used for strength calculation, which makes the operation of the pump more reliable and durable, and prolongs the service life of the pump.

★ The bearings of some products have water cooling structure.

which can be used under high temperature conditions.

★ The surface of the shaft sleeve can be treated with a special process, and the stainless steel shaft sleeve can also be used, which can prevent rust and greatly prolong the service life of the mechanical seal.

Performance Range

This product mainly transports clear water or other media with physical properties similar to clear water;by changing the material, sealing structure and method of the flow-passing parts, it can also transport other liquids.

Please contact our company in advance.

The temperature of the conveying medium normally used by this product is ≤80°C.

If the temperature of the medium exceeds this value, please contact our company in advance.

Structure Description

The suction port and discharge port of the SOM pump are below the axis of the pump, and all parts can be dismantled by lifting the pump cover during maintenance without moving the motor and pipeline.
