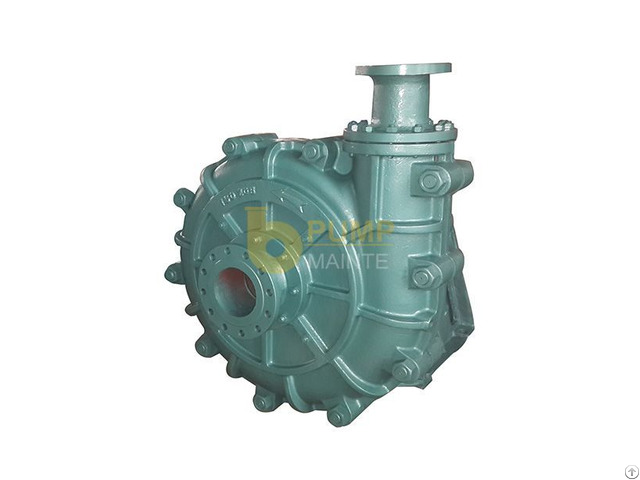

Single-suction High Head horizontal centrifugal slurry pump

Structural characteristics

ZGB series slurry pump is single-stage, single-suction, cantilever, horizontal centrifugal slurry pump, bearing thin oil lubrication structure, high-chromium anti-wear metal material for flow-through parts, wide flow range, high lift, multi-stage series connection.

Slurry Pump For Sale: shijiazhuang mainte slurry pump co., ltd

Applicable working conditions

It is especially suitable for long-distance transportation of tailings in iron ore or non-ferrous mineral processing plants, as well as feeding conditions of filter presses.

Performance range

Discharge range: 65 ~ 300mm

Flow range: 40~1400m3/h

Head range: 20 ~ 120mBasic parameters of ZGB series slurry pump

ZGB Pump model flowQ(m3/h) HeadH(m) Rotating speedn(r/mi) Effectivenessη(%) Must have NPSH margin(m) Discharge port diameter(mm) Suction port diameter(mm)

65ZGB 25.2～72 17～28 980 45～63 0.3～2.2 65 80

65ZGB 43～102 38～63 1480 51～63 2.3～5.0 65 80

80ZGB 55～120 28～42 980 46～66 0.8～2.3 80 100

80ZGB 73～175 63～92 1480 47～65 2.4～5.0 80 100

100ZGB 100～250 25～42 980 57～78 0.5～2.3 100 150

100ZGB 150～375 60～95 1480 58～78 2.5～6.0 100 150

100ZGB-120 180～420 95～120 980 57～63 1.7～2.9 100 150

150ZGB 250～510 35～50 740 53～77 1.2～2.2 150 200

150ZGB 280～650 62～90 980 53～78 2.2～4.2 150 200

150ZGB-120 370～700 90～120 980 58～65 4.5～6.0 150 200

200ZGB 370～700 40～54 740 57～76 0.7～4.0 200 250

200ZGB 410～1000 70～93 980 63～76 1.1～6.0 200 250

200ZGB-120 490～1080 90～121 980 50～62 5.5～7.8 200 250

250ZGB 450～900 38～50 740 50～78 0.5～4.1 250 300

250ZGB 620～1200 68～90 980 55～78 2.8～6.0 250 300

250ZGB-120 610～1250 92～120 980 52～70 5.0～8.0 250 300

300ZGB 670～1210 37～53 740 68～81 1.6～4.0 300 350

300ZGB 810～1400 66～94 980 68～81 4.0～6.5 300 350

Shijiazhuang mainte slurry pump Co., Ltd. Is a scientific and technological innovative pump production company integrating R & D, production, marketing and service of desulfurization pump, slurry pump, dredging pump, sewage pump, non blocking centrifugal pump, submersible slurry pump, clean water pump and other products.

The company has strong technical production capacity and perfect service system.
