Single Screw Rotor Slurry Sewage Pump - China

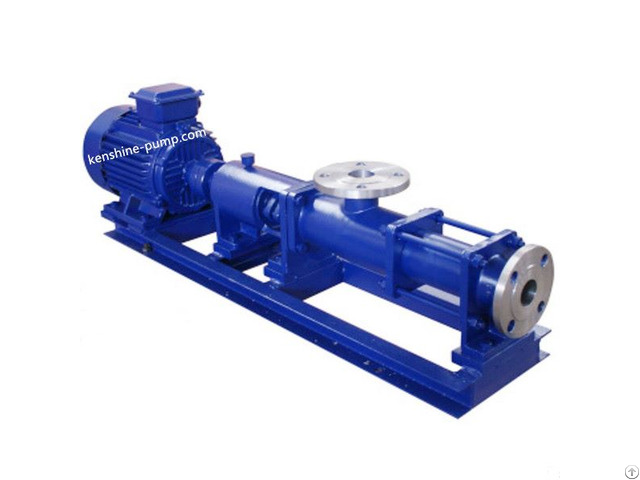

G single screw pump /eccentric screw pump

G type single screw pump is a new type of pump based on the rotary meshing positive displacement principle.

The main components are eccentric screw (rotor) and fixed bushing (stator).

Due to the special geometrical shape of the two components, separate sealing capacity cavities are formed respectively.

The medium flows uniformly from the axial direction, with low internal velocity, constant volume and stable pressure, so there will be no eddy current and agitation.

Suction height is up 6meters Pumped liquids

The output pressure of each stage pump is 0.6mpa, the head is 60m(clean water), G single screw pump is suitable for conveying high viscosity fluids and liquids containing hard suspended particles or fibers etc.

impurity.

Liquid temperature can be up 80 degree Celsius.

Driving device

Transmission device can be directly driven by the shaft coupling, or speed motor, triangular belt, gearbox, and variable speed driver.

Features:

Screw pump parts less, compact structure, small volume, simple maintenance, rotor and stator is the pump wear parts, simple structure, easy to assemble and disassemble Application

1 - Environmental protection: Transport of industrial sewage, domestic sewage, sludge and turbidity containing solid particles and short fibers, especially suitable for oil-water separator, plate and frame filter press and other equipment

2 - Marine industry: wheel bottom cleaning, transportation of oil, water, oil residue, oil sewage and other media

3 - Petroleum industry: transmission source oil, mixture of crude oil and water, mixture of coalfield gas and water, polymer injection into the formation, etc., thus reducing the cost of mechanical oil recovery and coalfield gas extraction and increasing oil recovery factor;

4: Transportation of medicine, daily chemicals, various viscous pulps, emulsions, and various ointments

5: Food canning industry: transportation of all kinds of sticky starch, cooking oil, honey, syrup, fruit pulp, cream, fish meat and its offal

6: Brewing industry: all kinds of fermented viscous grits, milk holes, grain products residue, all kinds of sauces, pulps and mucus containing solid blocks

7 - Construction industry: spraying and conveying of cement mortar, lime slurry, coating and other pastes

8: Mining industry: underground water and sewage water containing solid particles in mines are discharged to the surface

9: Chemical industry: all kinds of suspension, grease, all kinds of colloidal slurry, all kinds of adhesive

10: Printing, paper industry, high viscosity ink, polymer plastics and various concentrations of pulp, staple fiber pulp transportation.

11: Industrial boiler, power plant: coal water slurry transportation.
