Shield Type Hot Water Circulation Booster Pump - China

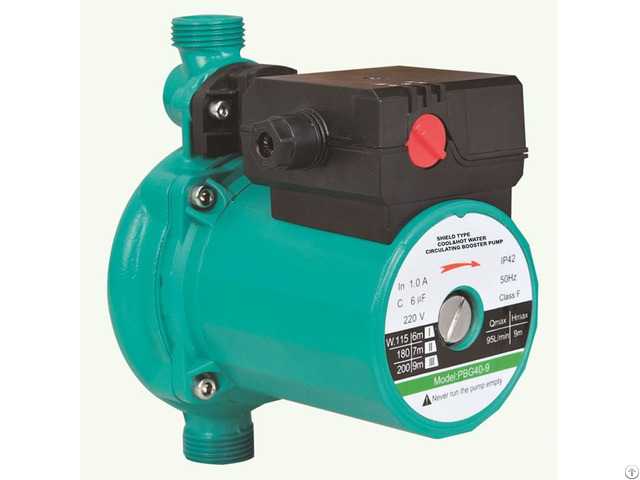

PBG Shield type hot water circulating booster pump This pump is suitable for below 100 ℃ hot and cold-water circulation and pressurization/booster, especially for the shower due to low water pressure, pressurization for Low household water pressure and water supply, water supply for solar water heater, hot water circulation pressurization for boiler, liquid booster and circulation for industrial equipment, circulation and pressurization for air conditioning and refrigeration systems.

Features:

The structure of pump adopts stainless steel sleeve to make the iron core of motor and the water completely be shielded for isolation and cancel the traditional mechanical seal.

It can solve the problem of the conventional water seal leakage.

bearing, ceramic shaft, wear-resisting, anti-corrosive, natural water lubrication, low noise, working voltage does not load all the way, as long as the correct use, long service life, All the materials inside the motor are made of high temperature and high-quality materials.

It suitable for hot water cycle pressurization system, pump can be equipped with automatic water control switch.

More convenient to use.

The pump wire box is designed with three-speed switch.

It can be adjusted according to different environment and requirements of users.

working conditions 1, the transmission medium temperature range: 0℃-100℃ 2, the highest ambient temperature: +40℃ 3, medium requirements: clean liquids.

No solid debris, no viscosity, no corrosion

4, chemical properties: neutral, non-explosive liquid similar to water (glycol content 30%) 5 - To extract other liquids, consult the manufacturer first 6, the maximum working pressure 100PA 7, minimum inlet pressure: temperature at 50℃ at 0.05bar The temperature is 95 ℃ at 0.3 bar The temperature is 110 ℃ at 1.0 bar The above values are only suitable for increasing 0.01bar at 100m at an altitude of 300m, and the maximum inlet pressure should be maintained to prevent noise caused by cavitation.

8, rated voltage between -10% to 10%, When too low voltage will appear particularly slow, the pump cannot start or heating fast, resulting in not enough head pressure.
