Sh R Series Horizontal Slurry Pumps - China

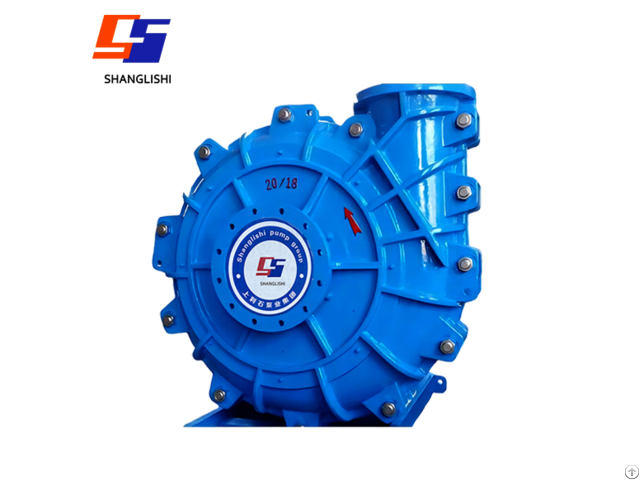

The Shanglishi horizontal slurry pump is a suspended wall centrifugal slurry pump, which is suitable for conveying abrasive or corrosive slurry.

It is widely used in metallurgy, mining, petroleum, chemical industry, coal, electric power, transportation, river dredging, building materials and municipal engineering departments.

Its structural characteristics, according to the scope of use can be divided into the following forms:

Heavy-duty slurry pump

Heavy-duty slurry pump has thicker bearing parts and is equipped with heavy-duty brackets, so it is suitable for conveying strong abrasion, high-concentration slurry or low-concentration high-lift slurry.

Within the maximum allowable working pressure range of the pump, it can be used in multi-stage series.

The above type of pump can also be used for a certain corrosive slurry.

Light-duty slurry pump

The light-duty slurry pump has high speed, small size and light weight, and is suitable for conveying fine particles, low-concentration slurry or corrosive slurry.

The weight concentration of the conveying slurry is generally not more than 30%, and it can also be used to convey high concentration and low abrasive slurry.

Gravel pump

The gravel pump has a large flow passage, which is suitable for conveying gravel, mud and slurry with large solid particles.

Rubber lining pump

The flowing parts of the rubber lining pump are made of rubber material.

Its pump body, pump cover and transmission parts are common to heavy-duty slurry pumps and light-duty slurry pumps.

Suitable for conveying fine particles and corrosive slurry.

Why Choose Shanglishi as Your Horizontal Slurry Pumps Supplier?

1 - Strong wear resistance

SHnglishi's horizontal slurry pumps are made of high-quality materials such as cast iron, stainless steel or alloys to withstand continuous contact with solids and extend their service life.

Wear-prone parts such as pump casing liners are usually made of high-chromium alloy or rubber to improve wear resistance.

2 - Efficient fluid delivery

The impeller of our horizontal slurry pump is specially designed to generate turbulence, effectively handle solid particles, prevent blockage, and ensure smooth delivery of slurry.

The shape and material of the impeller play a key role in the efficiency and performance of the pump.

3 - Flexible installation method

Horizontal slurry pumps can be placed horizontally for easy connection with the pipeline system.

This installation method reduces the need for manual operation and reduces maintenance costs.

Compared with vertical pumps, horizontal pumps have a larger installation area, but are more convenient to maintain.

4 - Simple operation and maintenance

Horizontal slurry pumps use mechanical seals, and most parts are interchangeable, which is conducive to extending service life.

In addition, horizontal pumps have low operating noise and vibration.

The overall structure is compact and the flow channel is spacious, which is easy to repair and maintain.

5 - Wide range of applications

Horizontal slurry pumps are widely used in mining, metallurgy, electricity, construction, environmental protection and other industries.

They can transport slurry or other heavy medium liquids with a concentration of up to 50%.

They are widely used in conveying concentrate slurry and discharging tailings in ore dressing plants, conveying coal washing media in coal washing plants, conveying high-temperature crystallization slurry in aluminum plants, and conveying slurry in cement plants.
