Sg Series Vertical Pipeline Centrifugal Pump - China

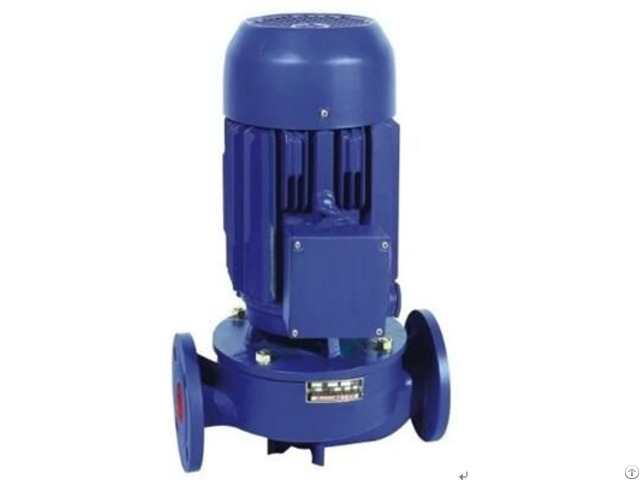

SG Series vertical pipeline pump:

SG Series vertical pipeline pump is a novel pump developed for pressurized conveying and solving the pipeline pressure is too low.

It has great advantages over the current application of horizontal centrifugal pump.

Due to the use of advanced mechanical seals, the motor shaft directly installs the impeller, so it has high efficiency, low power consumption, compact structure, small size, light weight, convenient decoration, etc., and can be used in series according to the head and flow requirements.

SG Series vertical booster pump performance range

Flow range: 1.5~1200m3/h

Head range: 5~125m

System high working pressure: ≤1.6Mpa

Medium temperature: -15 ° C ~ +140 ° C

Ambient temperature: ≤ +40 ° C

SG Series vertical pipeline pump application:

Pipeline booster pump should be suitable for high-rise buildings, garden sprinkler irrigation, pipeline pressurization, hot and cold water circulation, flammable and explosive liquids and corrosive liquid transportation and various boilers, water supply, HVAC, chemical and petroleum pipeline equipment.

(1) Pipeline booster pump (cold water) is suitable for pressurized water supply in high-rise buildings, garden sprinkler irrigation, cooling tower water, long-distance water delivery, refrigeration flushing, bathroom and other cold and warm water circulation pressure.

The use temperature is below 80 °C.

(2) SGR hot water booster pump is suitable for high temperature hot water pressurization cycle in greenhouses, boilers and other industries.

The use temperature is below 140 °C.

(3) SGP vertical chemical booster pump is a stainless steel pipeline pump that transports corrosive media.

It is suitable for use in the process of food, pharmaceutical, brewing, chemical and other industries.

The use temperature is below 100 °C.

(4) SGB explosion-proof pipeline booster pump is suitable for the transportation of non-corrosive flammable and explosive liquids of petroleum and chemical liquids.

The use temperature is below 80 °C.

(5) SGPB anti-corrosion and explosion-proof pipeline pump is suitable for the transportation of corrosive flammable and explosive liquids such as chemical and chemical liquids.

The use temperature is below 140 °C.
