Self Priming Open Impeller Stainless Steel Hygienic Pump - China

Self-priming stainless-steel pump

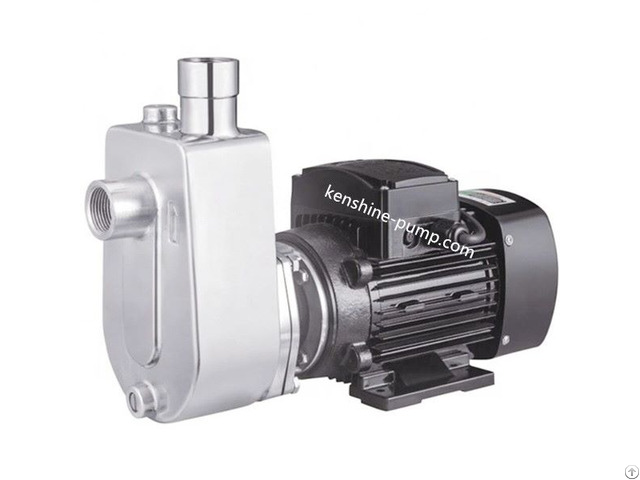

WBZ Self-priming stainless steel small centrifugal pump is made of stainless-steel casting (SS304 or SS316) with good corrosion resistance.

The impeller is semi-open and swirling structure.

The flow parts and connecting frame are all made of stainless-steel material.

WBZ Self priming stainless- steel pump has self-priming performance.

Foot valve need not be installed onto the inlet pipeline and suction height of the pump is up 4meters.

Pumped liquids

WBZ Self priming stainless-steel pump can transport corrosive or hygienic liquids, containing small soft particles or fiber.

Liquids temperature is not higher than 103℃.

Application:

WBZ Small self-priming stainless-steel pump is widely used in food, beverages, pharmaceuticals, sewage treatment, chemical, electroplating, dyeing, fine chemicals, and other liquids.

Features:

Stainless-steel welded shaft structure effectively guarantees the life of the mechanical seal and impeller balance.

With PTFE seal, according to different customer needs, the pump can be equipped with explosion-proof motor.

Connection between pump and motor can be for closed coupling or shaft coupling

Motor: 220V-240V/50HZ/60HZ, 1Phase, 380V-440V/50HZ/60HZ, 3Phase

Suction height: 4m Working conditions:

1 - Pumped medium: the solid content of insoluble volume of not more than 0.1% of the unit volume, particle size is not greater than 0.2mm.

(Mediums such as with a small particle to be used to wear mechanical seal, please specify when ordering.

)

2 - Ambient temperature does not exceed 40 ºC, relative humidity of not more than 95%, altitude of not more than 1000m.

3 - The: transmission medium kinematic viscosity of 7×10-7-23×10-6m2/s.

Model meaning:

50WBZ13.5-22

50: pump inlet (50mm)

WB: Stainless steel small centrifugal pump

Z: Self-priming pump

13.5: flow rate (13.5m3/h)

22: delivery head (22m)

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
