Screw Pump

Waste Management

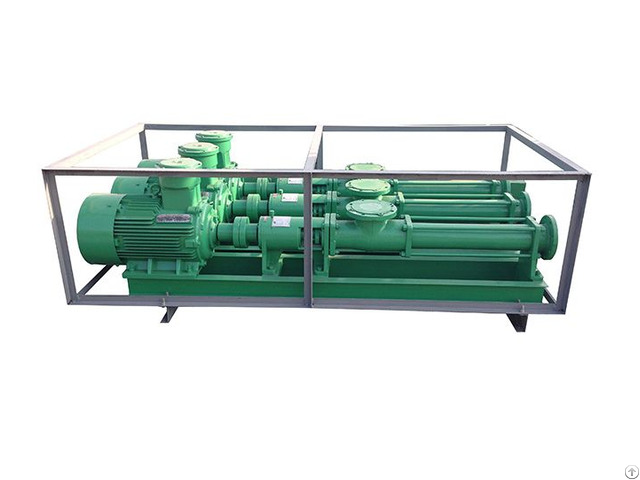

Screw pump is an ideal equipment used for feeding slurry for decanter centrifuge in solids control system.

(1) This pump has a strong adaptability to medium, smooth flow, small pressure fluctuation and high suction capacity.

(2) With unique design of rotor and stator, low rate of pump internal flow and more stable pressure.

(3) Screw and machine body are made of stainless steel material which is corrosion resistant and has a long service life .

(4) With few spareparts, simple maintenance, easy to be replaced and maintained, compact structure and small footprint.

Screw Pump Parameters

Model Flowm3/h Pressure(Mpa) Speed(rpm) Power(kW) Motor pole logarithmic Inlet flange(DN) Outlet flange (DN) Dimension(mm) weight(kg)

DCG40-1 12 0.6 960 4 6 80 65 1500×320×550 250

DCG50-1 20 0.6 960 5.5 6 100 80 1550×340×562 280

DCG60-1 30 0.6 960 11 6 125 100 1810×370×600 360

DCG70-1 40 0.6 720 11 8 150 125 2210×420×700 420

DCG85-1 50 0.6 585 15 4 150 125 2100×420×700 590

DCG105-1 60 0.6 360 18.5 4 200 150 2530×420×700 650

DCG105-1 70 0.6 420 18.5 4 200 150 2530×420×700 650

Remark 1 - The motor power of centrifugal pump choosed is according to drilling mud specific gravity 1.2g/cm3.2 - Certificate: Ex dⅡ BT4。
