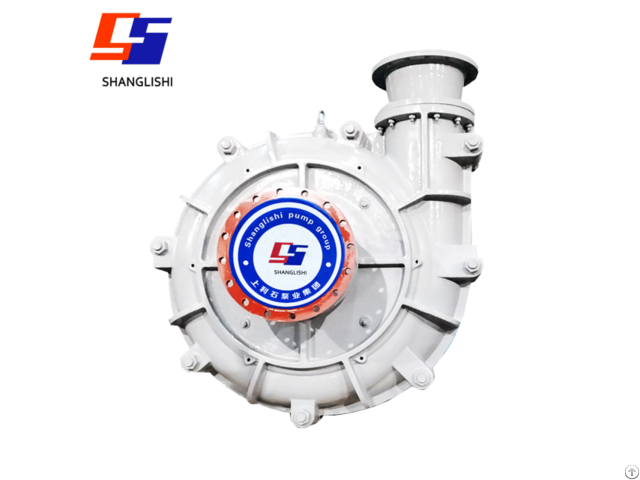

Sazp Ceramic Slurry Pump Supplier - China

Shanglishi Ceramic slurry pump is a kind of pump equipment specially used for conveying slurry medium containing solid particles.

It is widely used in mining, metallurgy, electric power, chemical and other industries in the slurry conveying system, with wear resistance, corrosion resistance, high efficiency and energy saving.

The use of ceramic materials as key components improves the wear resistance and corrosion resistance of the pump, thereby extending the service life of the pump and reducing maintenance costs.

As a kind of high efficiency, wear-resistant and corrosion-resistant pump equipment, ceramic slurry pump has a wide range of application prospects in mining, metallurgy, electric power, chemical industry and other industries.

Through the in-depth understanding of its structural characteristics, working principle, performance parameters and application scope, we can better select and use ceramic slurry pumps, and provide strong support for the production and development of enterprises.

Our advanced Ceramic Slurry Pump combines robust ceramic components, innovative design, and state‐of‐the‐art sealing technology to offer: High Wear and Corrosion Resistance: All pump parts in contact with slurry are fabricated from high-hardness silicon carbide ceramics.

Ease of Maintenance: A back-pull structure allows for quick disassembly without disturbing inlet and outlet pipelines.

Optimized Efficiency: An axial adjustment mechanism maintains an ideal gap between the impeller and pump cover, ensuring high performance.

Reduced Downtime: With a durable design and advanced grease lubrication system, maintenance intervals are significantly extended.

Working conditions

Inlet and outlet diameter 1-24"(25-600mm)

Flow range 5-5000m³/h

Lift range 10-120m

Speed 720, 990, 1480 and 2960r/min

Power 30-1200kw

Main models 1½1 • 2/1½ •3/2 • 4/3 • 6/4 • 8/6 • 10/8 • 12/10 • 14/12 • 16/14 •18/16 •20/18 • 24/20 •24/22 •28/24

Bracket type B C D E F G ST

Medium Highly abrasive, high concentration slurry

Material classification ceramic, silicon carbide

Transfer method DC/CV/CRZ/CLZ/ZVZ
