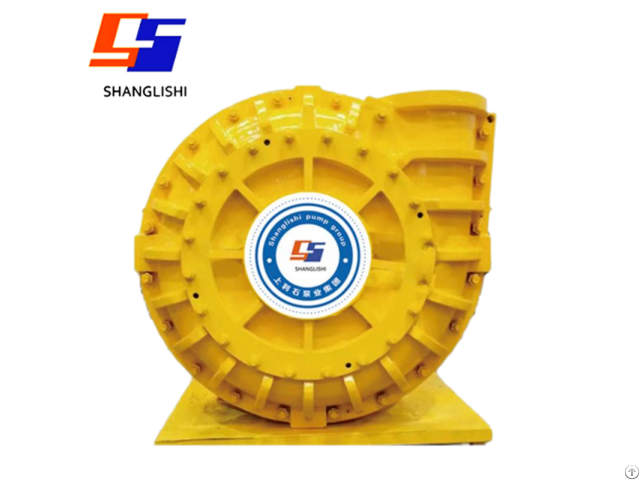

Sazp Ceramic Slurry Pump - China

Ceramic Slurry Pump Specification

Size: 1" to 24"

Capacity: 5-5000m³/h

Head: 10-120m

Speed: 720, 990, 1480 and 2960r/min

Power: 30-1200kw

Materials: Ceramic, Silicon Carbide.

Ceramic Slurry Pump Description

SAZP ceramic slurry pump series is suitable for mining, metallurgy, electric power, coal, chemical industry, building materials and other industries to transport corrosive and abrasive slurries containing solid particles, such as ash and slag transportation in power plants, coal slurry transportation, and slurry transportation in metallurgical dressing plants, Coal slurry and heavy medium transportation in coal washing plant, etc.

The maximum weight concentration of its solid-liquid mixture is: mortar 45% and slurry 60%.

The pump has high efficiency, stable operation, high reliability and long service life.

Shanglishi series ceramic slurry pumps are ceramic material slurry pump products developed in combination with new ceramic technology.

They are especially suitable for complex working conditions with strong wear and wear + corrosion in metal ore dressing plants and non-metal dressing plants.

After being put on the market, it has achieved good results and has been well received by users.

The SAZP ceramic slurry pump is a patented product independently designed and developed by our company.

Ceramic Slurry Pump Feature

1 - The seal adopts the popular sealing method in the mineral processing industry: auxiliary impeller + packing seal.

2 - The current-passing parts are made of new ceramic materials, which have high hardness, good wear resistance, and a lifespan 3-5 times that of metal.

3 - The interior of the outlet spinal canal is made of ceramic material with good wear resistance.

4 - The ceramic slurry pump subverts the structure of the traditional metal slurry pump: it uses a split pump head structure, which is simple in structure and easy to install.

5 - Bearing lubrication method: Use grease lubrication technology to change the leakage problem of traditional slurry pump thin oil lubrication.

6 - Complete models: There is a wide range of models to choose from, with parameters covering flow rates up to 2000m3 and lifts up to 120m.

The overall installation dimensions and accessories can be interchanged with metal slurry pumps.

Structure Description

The flow-passing parts of the pump are the pump body, impeller, pump cover lining or integral core casting design.

The parts in contact with the fluid medium are all ceramic materials with good wear resistance and corrosion resistance;

With an axial adjustment structure, the impeller can be easily adjusted axially to maintain the gap between the impeller and the front cover, thereby maintaining high efficiency of the pump;

The layout of the pump is a "back-pull" structure.

This allows the pump to disassemble the impeller, mechanical seal and shaft assembly without disassembling the pump's inlet and outlet pipelines, which facilitates maintenance;

The pump shaft has a large diameter and a short shaft head, which can reduce the deflection of the shaft during operation and extend the service life of the seal.

The bearings are lubricated with thin oil.

The bearings are installed in a removable bearing box with a rubber-sealed round shaft to prevent dirt and water from entering.

All parts of the pump that are in contact with the medium are made of silicon carbide ceramics, which are wear-resistant and corrosion-resistant, ensuring a long service life of the pump;

It is designed with an axial adjustment device to axially adjust the flow parts to always keep the system running at the high efficiency point;

There is a large tapered space designed between the impeller and the pump cover, which can effectively prevent solid media from entering the shaft seal and extend the life of the shaft seal;

The shaft adopts a rigid design, and the bearings adopt roller bearings and radial thrust bearings, which can withstand large radial forces and ensure stable operation of the transmission components.
