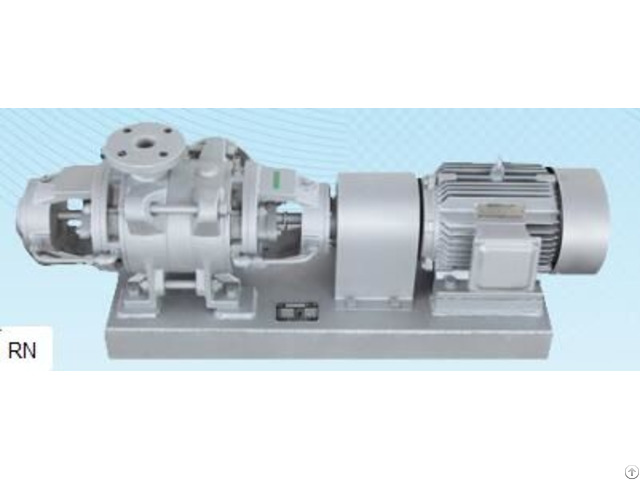

Rn High Temperature Boiler Feed Water Multistage Centrifugal Pump - China

RN Series heat water pumps are widely used in petrochemical, papermaking, packaging, rubber, food, biological, wood, feed and other industries of high temperature water transportation, water supply pressure, boiler water.

Because the pump allows the pumped liquid with high temperature, it can greatly reduce the boiler energy consumption and reduce combustion emissions to achieve the goal of energy saving and emission reduction.

It is especially suitable for the recovery of steam condensate.

RN Series heat water pump is used to transfer water or other similar liquids without solid particles or fiber etc impurity and the liquid is not flammable and not explosive.

Liquid temperature: 80 to 180 degree Celsius Pump is horizontal single suction multistage centrifugal pump and maintenance is convenient.

Bearing is self-aligning bearing with high temperature resistance and running is steady

External cooling mechanical seal with good seal and long life

Pump with shaft coupling, low noise and low vibration

Specification sheet:

Model Stages Motor power(KW) Speed(rpm) Flow(m3/h) 3 4 5 6 7

RN4 4 5.5 2950 Head(m) 88 86 84 81 77 5 7.5 2950 111 108 105 101 96 6 7.5 2950 133 130 126 122 116 7 11 2950 155 151 147 142 135 Model Stages Motor power(KW) Speed(rpm) Flow(m3/h) 6 7 8 9 10

RN6 4 5.5 2950 Head(m) 86 84 80 77 75 5 7.5 2950 108 105 100 97 94 6 11 2950 129 126 120 116 113 7 11 2950 151 147 141 136 132 Model Stages Motor power(KW) Speed(rpm) Flow(m3/h) 10 11 12 13 14

RN10 4 7.5 2950 Head(m) 96 94 93 91 89 5 11 2950 120 118 116 114 111 6 15 2950 144 142 140 137 134 7 15 2950 168 165 163 160 156

Company Contact:

• Posted By: Kenshine Pump And Valve MFG Co.,LTD

• Phone: 862133592713

• Address: Yindu Road 1535,Minhang District, Shanghai, Shanghai , China

• Email:

• Website: http://www.kenshine-pump.com

• Business Description: Manufacturer and sales for various pumps such as centrifugal

  pump, industrial pump, chemical pump, submersible pump, self priming

  pump, diaphragm pump, electromagnetic pump, gear pump, multistage pump etc

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD is the integrated enterprise specializing in research and development and design and produce and sales of pump and valves.

  KENSHINE PUMP&VALVE MANUFACTURING CO., LTD locates in MINHANG industrial zone, SHANGHAI which is the economic trade center in China and established in 1985 - KENSHINE PUMP&VALVE MANUFACTURING CO., LTD have developed and enlarged many years, supported by scientific management, sophisticated technology, advanced equipment and strict quality system.

  Company is continuously going up as the 40% rising speed every year and is as the one of industrial manufacturer in China.

  Company had ISO certificate in 1998 and the products are according to JB/JQ20103 1998 and JB/JQ20104 1998 standard.

  The quality of products is insured by PICC.

  Company has several sales and service networks in many middle and big cities of China.

  The products are sold to domestic cities and exported oversea about 40% products.
