Qyb Gas Liquid Mixing Vortex Pump - China

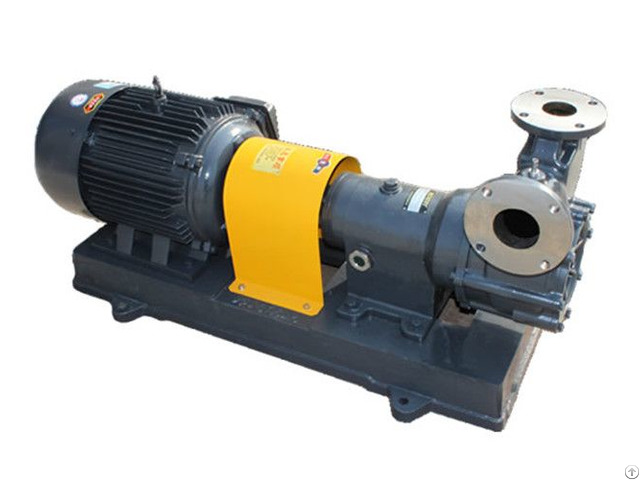

Pump introduction: QYB type gas liquid mixing pump (also known as air float pump, dissolved air pump) is a horizontal installation of self priming gas liquid mixing pump.

All parts of the QYB pump are made of stainless steel.

Gas liquid mixing pump inlet can use negative pressure to suck gas without the use of gas compressor and atmospheric injector.

The high speed rotating impeller stirs the liquid and gas thoroughly without the need for agitator and mixer.

Through the pressurized mixing in the pump chamber, the gas and liquid are fully dissolved and the dissolution efficiency can reach 80 to 99.9 percent.

Highly soluble liquids can be produced without large pressurized gas tanks or expensive reaction towers.

QYB gas liquid mixing pump can attract and mix and dissolve and directly send highly dissolved liquid to the equipment.

Therefore QYB type gas liquid mixing pump can improve the production efficiency of dissolved gas and liquid and simplify the production equipment to save the site and greatly reduce the initial investment budget, save the operation cost and maintenance costs.

Application scope QYB gas liquid mixing pump is suitable for liquid conveying, enterprise mixing, circulation and pressurization.

Typical applications: air floatation treatment equipment, ozone water production equipment, oxygen enriched water production equipment, biochemical treatment equipment etc.

Circulating transfer of heat and cold media of various temperature regulating devices, Various filtration devices, Extracting or high-pressure conveying low viscosity liquids such as gasoline, diluent and various solvents from underground storage tanks Spray treatment of clear water, pure water, food, chemical liquid and waste liquid Intermittent operation, water hammer, back pressure rapid change and other harsh use Such as small steam furnace, high-rise water, high pressure water injection to the high-pressure tank, by the vacuum tank to attract Take sample water from the river or water storage tank, transfer foaming liquid, easy to appear air pockets in the long horizontal pipeline.

Medium conditions Thin, clean, low-viscosity liquid PH range is 3 to 9; Liquid temperature 15 to 120 degree Celsius High ambient temperature: 40 degree celsius The gas-liquid volume ratio is about 1: 9, air suction volume is 8 to 10 percent Suction height: 9m, NPSH.
