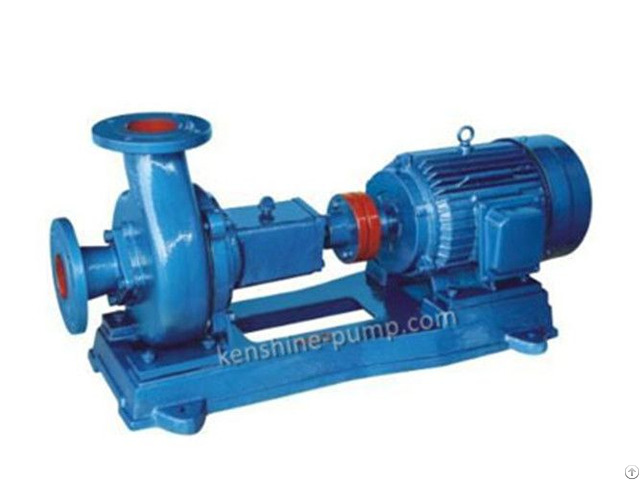

PW, PWF Sewage centrifugal pump

PW, PWF Sewage pumps are single stage single suction cantilever centrifugal sewage pumps.

The pump suction inlet is in the axial horizontal direction and pump discharge outlet can be installed in the horizontal or vertical direction as the user’s requirements.

PW, PWF Sewage pump is mainly composed of pump cover, pump case, impeller, shaft seal, shaft, bracket and other parts.

Shaft seal adopts a new double end mechanical seal.

The pump and the motor are connected by the elastic shaft coupling and mounted on a common base plate.

The pump has the advantages of high efficiency, energy saving, stable operation, reliable performance and convenient maintenance.

Application:

PW Sewage pump can transport sewage containing suspended solid particles or long fiber and domestic waste water.

PW sewage pump is made of cast iron with high quality can transport sewage, containing suspended solid particles, long fiber materials and domestic waste water.

Waste water temperature is not higher than 100 degree Celsius.

PWF Corrosion resistant sewage pump is made of stainless steel (SS304) and can transfer the waste liquids with acid, alkali or other corrosive sewage in chemical, petroleum, light industry, food, pharmaceutical, brewing, environmental protection and sewage treatment etc industries.

Liquid temperature is no higher than 100degree Celsius.

Pump performance range

Flow rate: 36 to 180m3/h

Head: 8 to 49m

Speed: 960rpm to 2950rpm

Caliber: 25mm-100mm Model Flow rate Head Speed Power(kW) m3/h L/s m r/min Shaft Motor

50PW-65 14.5 4 16 1440 2.47 4

50PWF65 50PW-65 25 6.94 32 2900 3.35 4

50PWF-65 80PW-100 56 15.5 13.5 1440 4.1 5.5

80PWF-100 80PW-100 90 25 26 2900 7 11

80PWF-100 100PW-125 100 27.8 12.5 1440 5.7 7.5

100PWF-125 21/2PW 60 16.6 9.5 1440 2.5 4

21/2PW 90 25 26 2920 11 15

21/2PW 90 25 43 2940 17 22

4PW 100 27.8 11 960 4.7 7.5

4PW 160 44.4 25.5 1460 18 30

6PW 300 83.3 14 980 17 30

6PW 350 97 27 1450 42 55

8PW 500 139 13 730 29 45

8PW 550 153 25 980 59.5 75

10PW 800 222 13.5 730 40.2 75

10PW 1000 278 25 980 92 132
