Portable Dual Component Airless Spraying Equipment - Korea

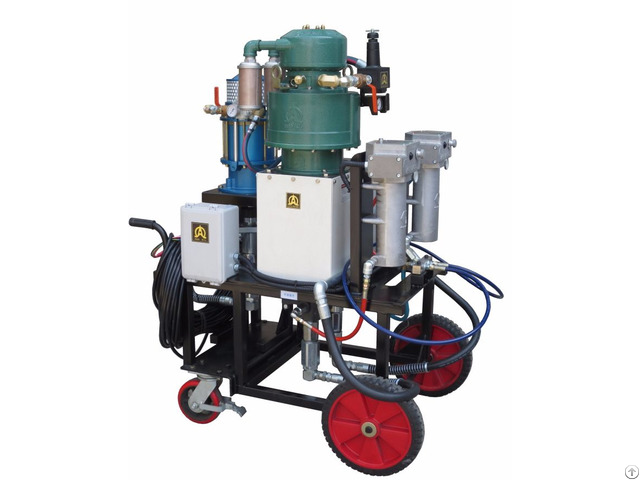

◆ Portable Dual Component Airless Spraying Equipment HK-PDP-2000

- Easily portable dual liquid equipment

- High-quality coating due to the applied paint heating machine(A main material and a hardener)

- Shortened drying time, paint for heating is available

- Adjustable depending on the dilution ratio of a main material and a hardener

- 1: 1 to 2: 1 when applied displacement pumps are the same size

◆ Technical Data [Part No.

HK-PDP-2000]

- Pressure Ratio : 74: 1

- Ratio Range : 1.2: 1~2.4: 1

- Max.

Delivery : 13.2L/min.

- Max.

Cycle : 50cpm

- Output per Cycle : 265cc

- Operating Air Pressure : 7kgf/cm²

- Max.

Discharge Pressure : 518kgf/cm²

- Dimension(LXWXH) : 140X90X165cm

- Weight : 440kg

- Noise : 80dB

- Air Motor Effective Diameter(Main) : 321mm

- Air Motor Effective : 203mm

- Air Motor Stroke : 120mm
