Pneumatic Piston Pump For High Viscous Fluids - China

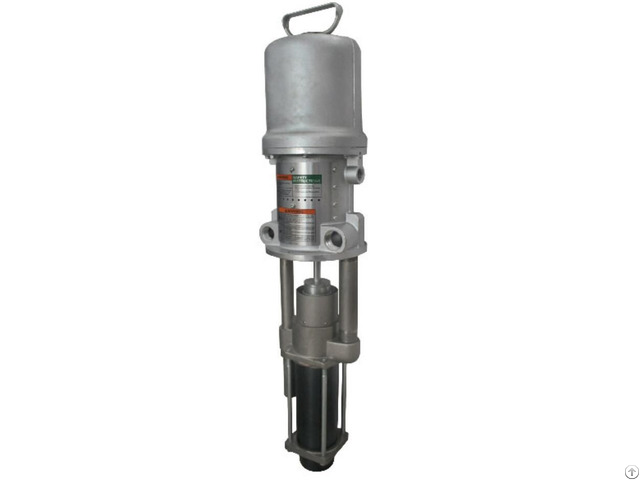

Pneumatic piston pump

Application

In the paint, glue, coating, polyurethane coating, automotive coating, building coating, oil transportation, chemical, food, pharmaceutical and other industries widely used.

The pump is very suitable for viscous liquid, corrosive liquid, liquid containing solid particles or gas bubbles.

A variety of materials, adaptation of wide, simple installation, easy maintenance.

Pump advantages

1 - After close of polishing and surface treatment of stainless-steel surface, without damaging the material chemical properties at the same time increase the speed of material transfer.

2 - Can handle a variety of high viscosity fluid, strong corrosion resistance.

3 - Less maintenance parts, in the true sense to reduce the maintenance cost.

4 - High mechanical life.

Max.

working pressure: 100PSI (0.7Mpa, 7bar)

Max.

flow rate: 18GPM (68LPM)

Max.

suction height (dry sucking): 6m

Fluid outlet size: 1 inch NPT(F) /BSP(F)

Fluid inlet size: 1 -1/2inch NPT(F)/ BSP(F)

Max.

air consumption: 34SCFM (0.817m3/min)

Air inlet size: 1/2inch NPT(F)/BSP(F)

Connection type: NPT /Flange (GB)

Conveying fluid ratio: 4: 1
