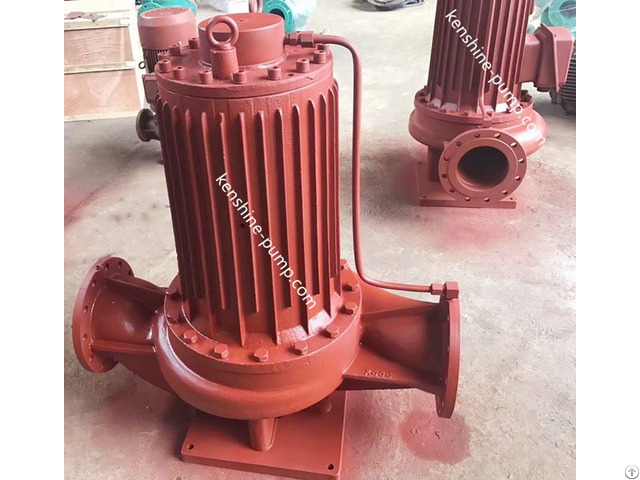

Pbgr Shielded Pipeline Centrifugal Hot Water Pump - China

PBG shielded pipeline centrifugal pumps

PBG shielded pipeline centrifugal pump absorbs the design of international shield pump and advanced manufacturing technology.

the motor shield technology is applied in the field of fluid transport.

The performance parameters of PBG shielded pipeline pumps are in accordance with the international standard IS02858 and national standard JB/ t6878.2-93.

PBG shielded pipeline centrifugal pump has the advantages of the reasonable structure, stable performance, low noise, no vibration and so on and it can replace the conventional horizontal centrifugal pump and the vertical pipeline pump.

performance range: flow 6.3-1080m3 /h, head 12.5-125m, motor power 0.37 ~ 160kW, speed 1450r/min and 2900r/min.

PBG shielded pipeline pump features

1, compact vertical structure, small volume, smooth operation, installation without adjustment.

2 - The pump inlet and outlet are designed with the same flange of specification and located on the same center line, which can be installed directly on the pipeline like a valve, with a low center, convenient for pipe layout and installation.

3, the coaxial size for pump and motor is short, so that the pump runs more stably, low noise.

4 - Cancel the traditional shaft seal to avoid the leakage of the conveying medium, so it has the remarkable feature of no leakage at all.

5 - Use sliding bearing instead of conventional motor rolling bearing to make the pump run smoothly and with low vibration noise.

6, convenient installation and maintenance, no need to remove the pipeline system, as long as the connection nut can be removed out of all rotor parts for inspection and maintenance.

7 - Series and parallel operation of the pump can be carried out according to the operation requirements of the flow rate and head.

PBG shielded pipeline pumps are mainly used

(1) PBG shielded pipeline pump is used for conveying water and other liquids with physical and chemical properties similar to water.

Medium temperature is not more than 80℃.

It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurized, long-distance transmission, hvac refrigeration cycle, bathroom and other cold and warm water circulation pressurized equipment.

The pump is especially suitable for high vibration and noise requirements, such as underground pump room, air-conditioning and refrigeration system.

PBGR type shielded pipeline hot water pump is mainly used for conveying soft water with temperature not exceeding 160℃ and no solid particles.

It is suitable for energy, metallurgy, chemical industry, textile, papermaking, hotel, hotel, bathroom, boiler hot water pressurized circulation conveying and urban heating system circulation and other occasions.

(3) PBGH shielded pipeline anti-corrosion type chemical pump is used to transport corrosive liquids without solid particles, corrosive, viscosity of liquid similar to water.

It is suitable for petroleum, chemical, metallurgy, power, paper, food, pharmaceutical and synthetic fiber and other sectors.
