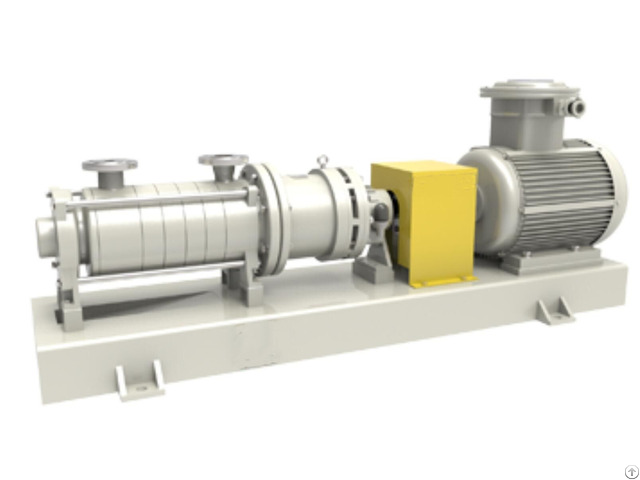

No Leakage Multistage Magnetic Pump - China

Pump overview:

TCD no leakage multistage magnetic pump is designed by our company to solve the problem

of fluid transportation with small flow rate and high head.

Its structure, hydraulic and magnetic

circuit design adopts advanced and novel technology, and the magnetic drive technology is

successfully applied to the multistage magnetic centrifugal pump, which solves the problems

of axial force balance and static sealing of multistage pump under high power, large gap

magnetic circuit design and high working pressure.

Pump advantages:

1 - TCD no leakage multistage centrifugal pump for petrochemical process is self-developed

and designed by our company according to HGT2730-2012 magnetic driven centrifugal

chemical process pump and API 685-2000 sealless centrifugal pump for petroleum, heavy

chemical, and natural gas industry.

2 - The material of flow passage parts such as pump body, inner rotor, pump cover, impeller, isolation sleeve and pump shaft can be made of 304, 316, 316L, 904, TA2, HC276 and

other materials by precision casting.

3 - The moving ring, shaft sleeve and sliding bearing are made of high wear-resistant and

temperature resistant crystalline silicon carbide, tungsten carbide and other materials, which have the characteristics of high strength, good wear resistance, good willfulness

and strong corrosion resistance, so as to effectively ensure the service life of the pump.

Pump application:

Widely used in petroleum, chemical industry, acid making, alkali making, smelting, rare

earth, pesticide, dye, medicine, papermaking, electroplating, electrolysis, pickling and

other production processes to transport corrosive liquids.

Performance range:

Design pressure: 1.6MPA-6.3MPA, Flow rate: 3m

3/h-155m

3/h, Head/lift: 20m-603m, Power: 5.5KW-315KW

Applicable temperature: -60 to 300 degrees Celsius, New materials are adopted, and the temperature resistance can reach 450 degreeC.,
